10-36 V
200 W
19600 lm
IP68/69K
Sale price5,039 kr Regular price5,435.00 kr
Save 396.00 kr

Tax included. Free Shipping from €300*

In stock – estimated delivery in 3 to 5 working days
Strands NUUK D-LINE LED BAR 40″ – Video
GTIN: 7323030193287SKU: 809454

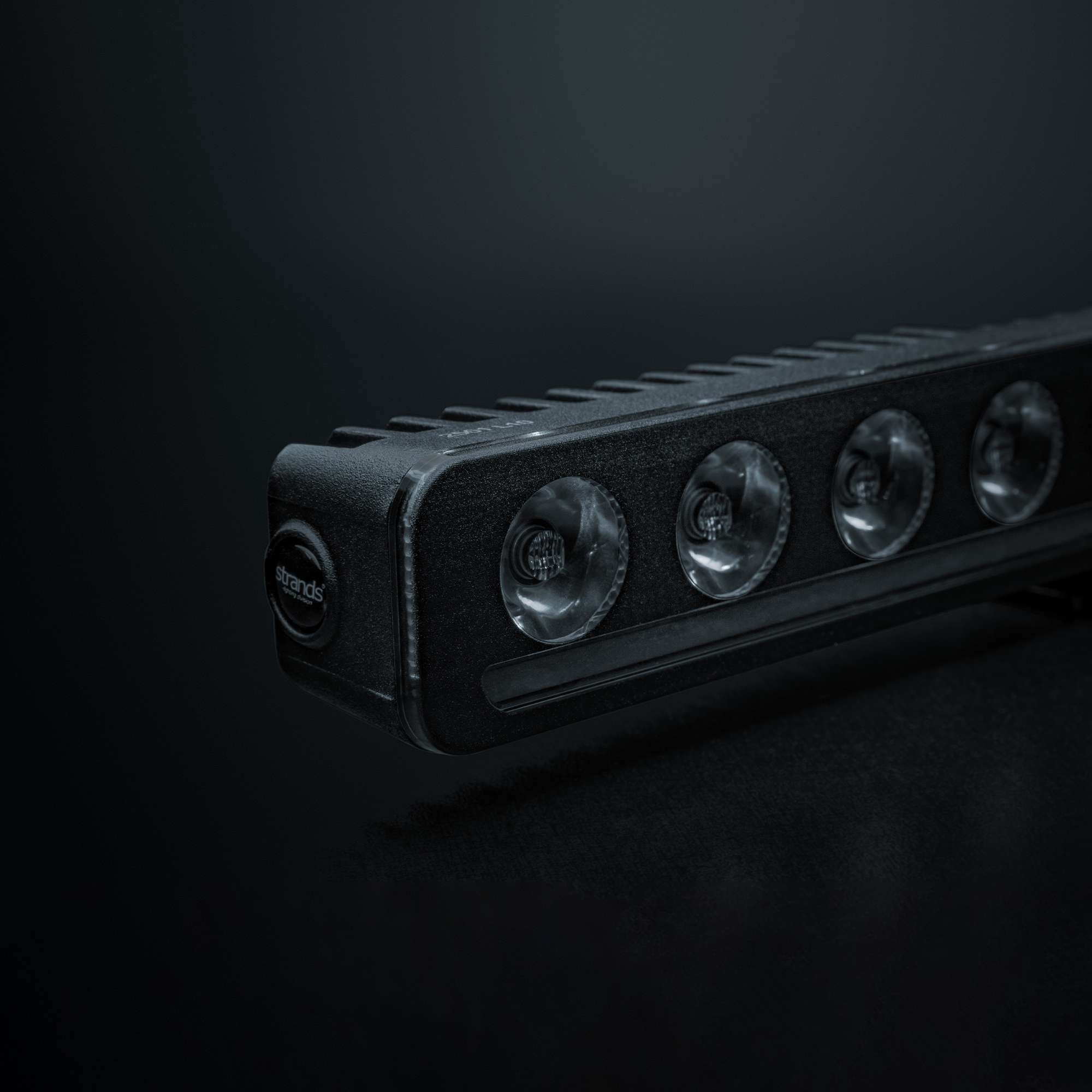

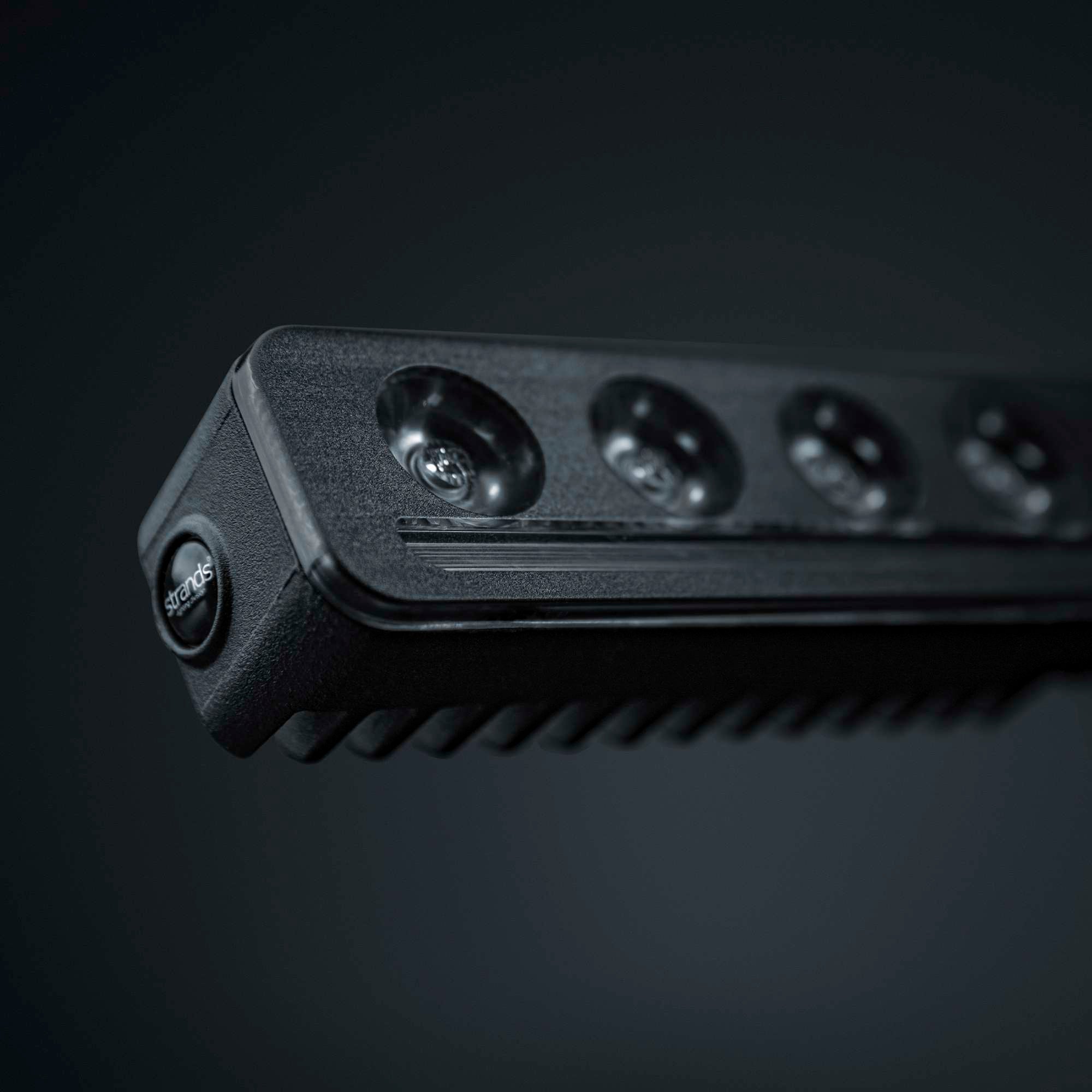

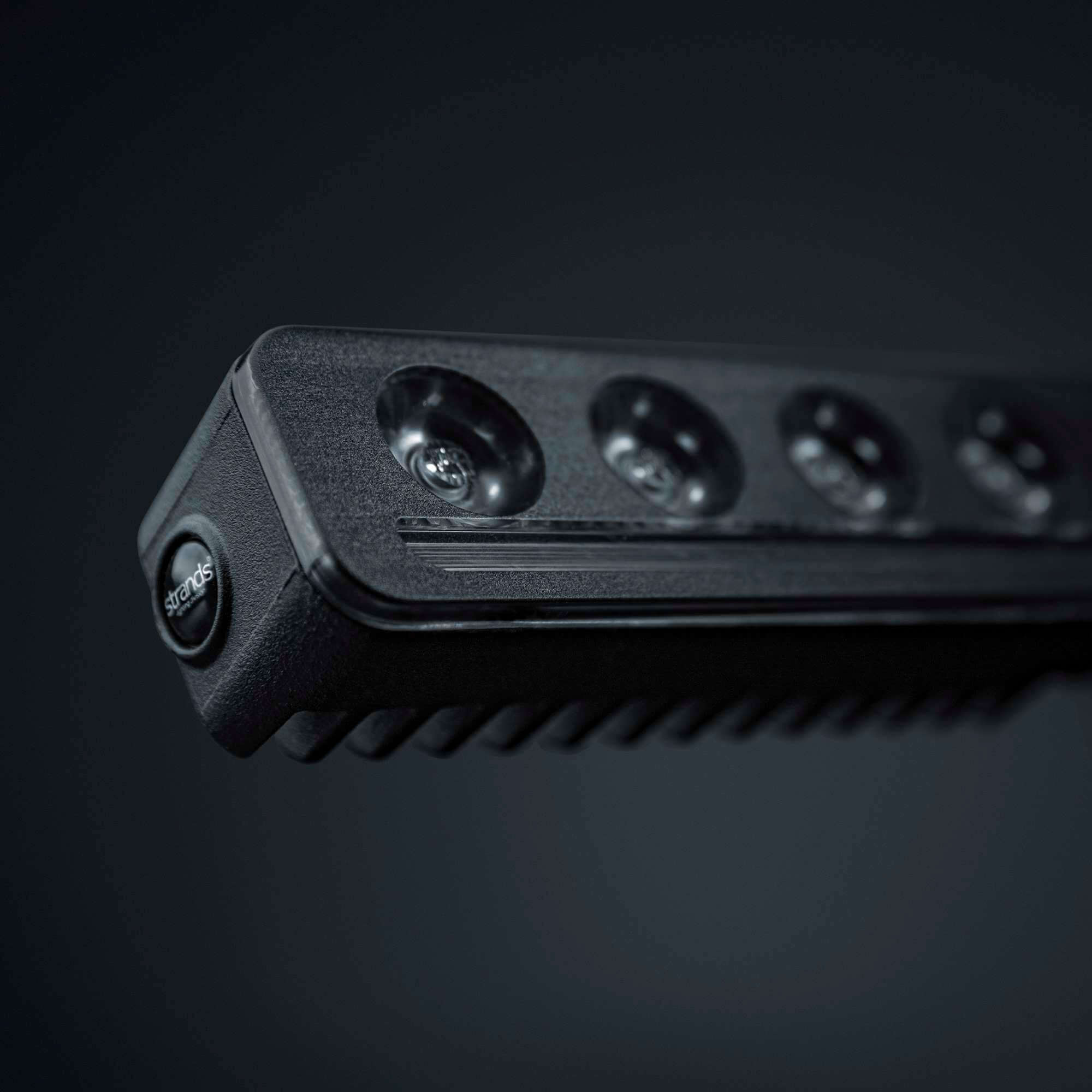

The Strands Nuuk D-Line 40" LED auxiliary light combines a sleek design with powerful light output, making it ideal for modern vehicle setups. With a depth of only 3.3 cm and a height of 4.5 cm (including bracket), the Strands LED light bar can be subtly integrated while ensuring maximum performance.

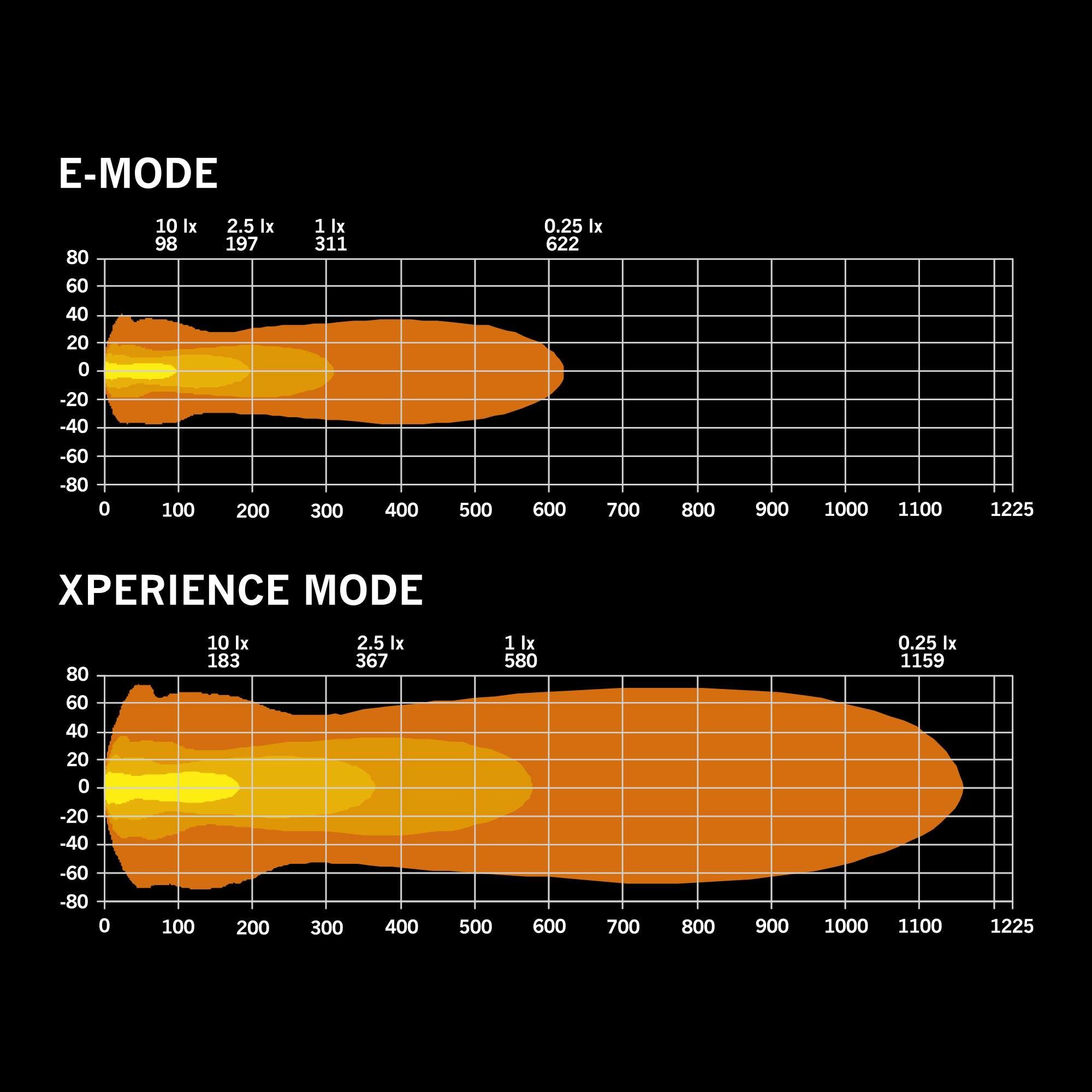

In Xperience mode, the Strands LED auxiliary light delivers 19,600 lumens and achieves a range of up to 580 meters. The expanded light pattern ensures even illumination forward and significantly increases visibility during night driving. The E-marked mode (R148/R149, Ref. 20) meets legal requirements and offers advantages, especially in poor weather conditions.

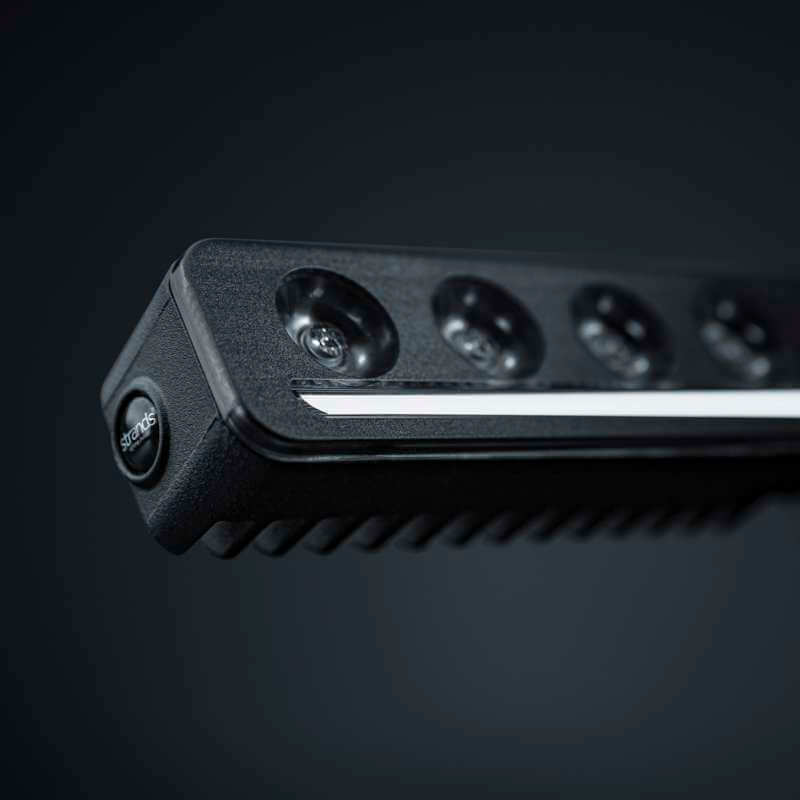

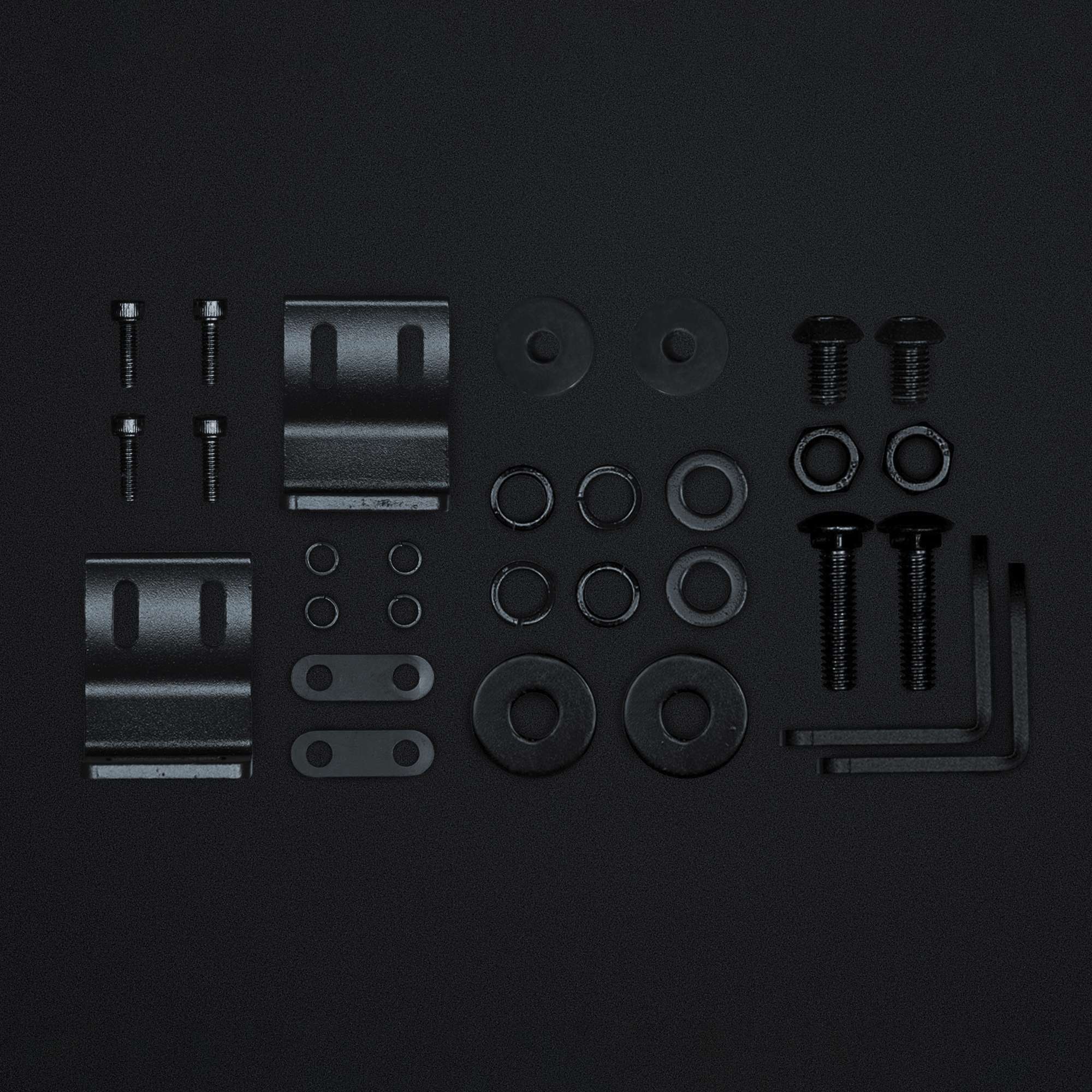

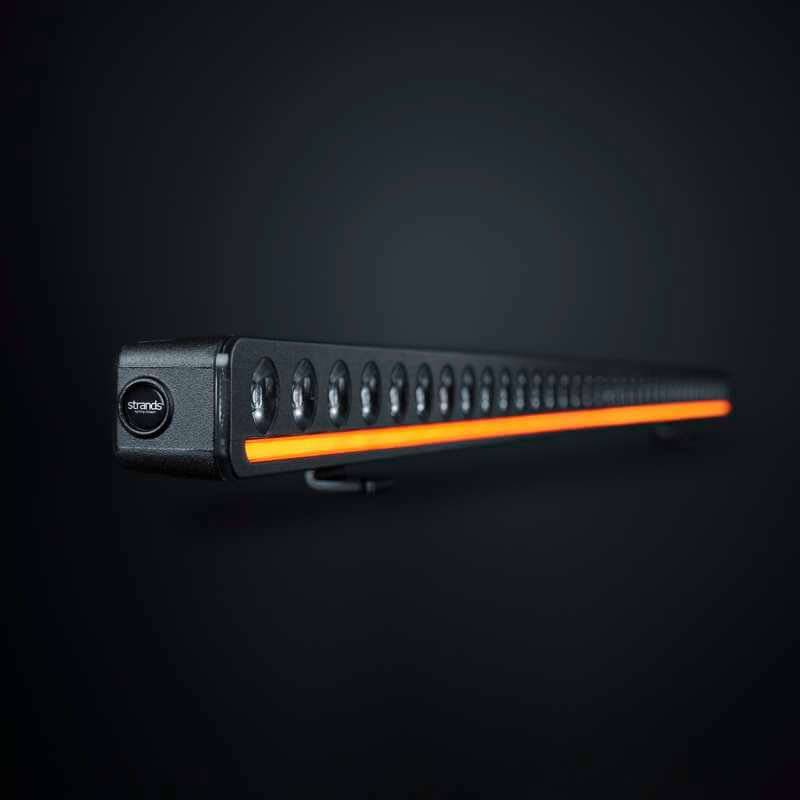

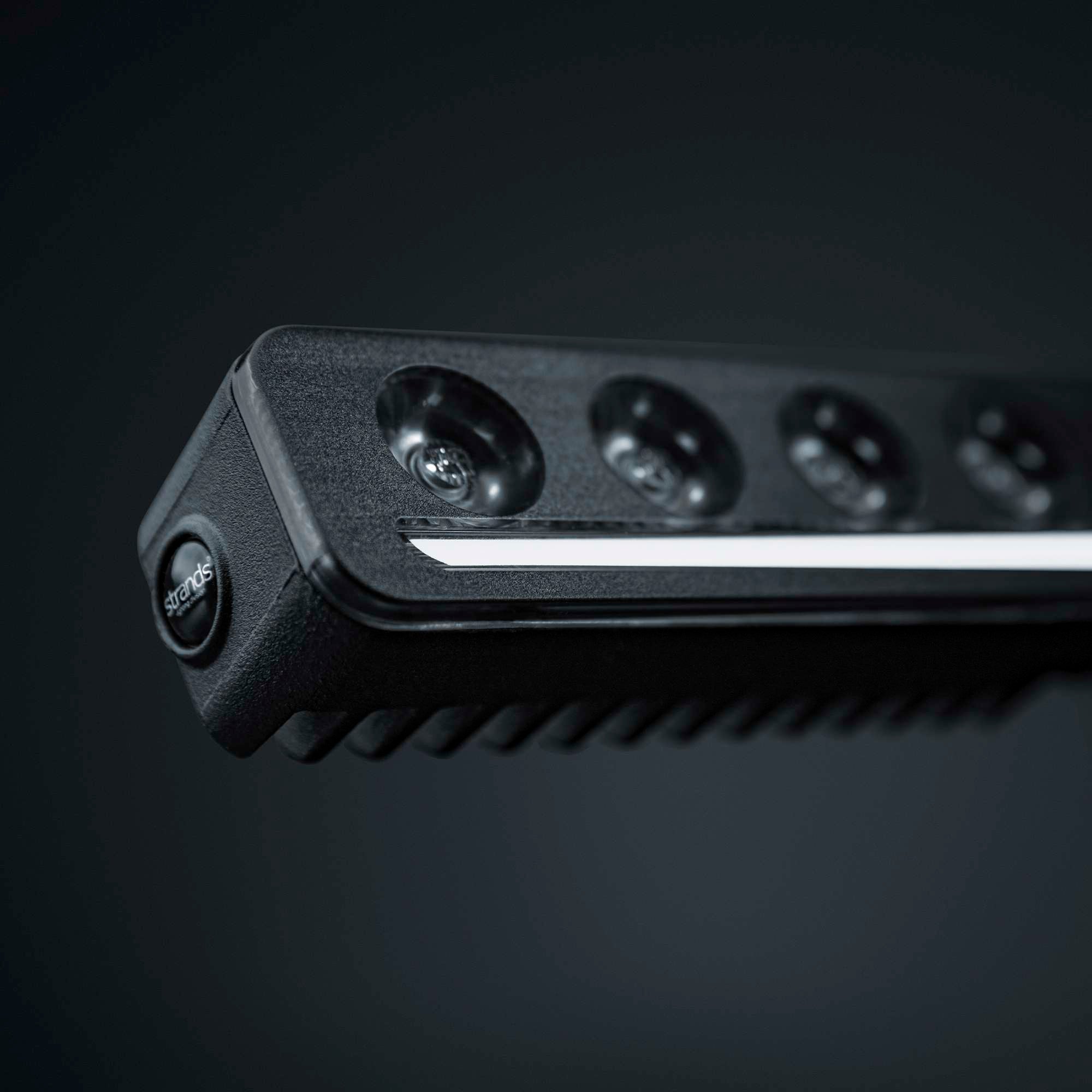

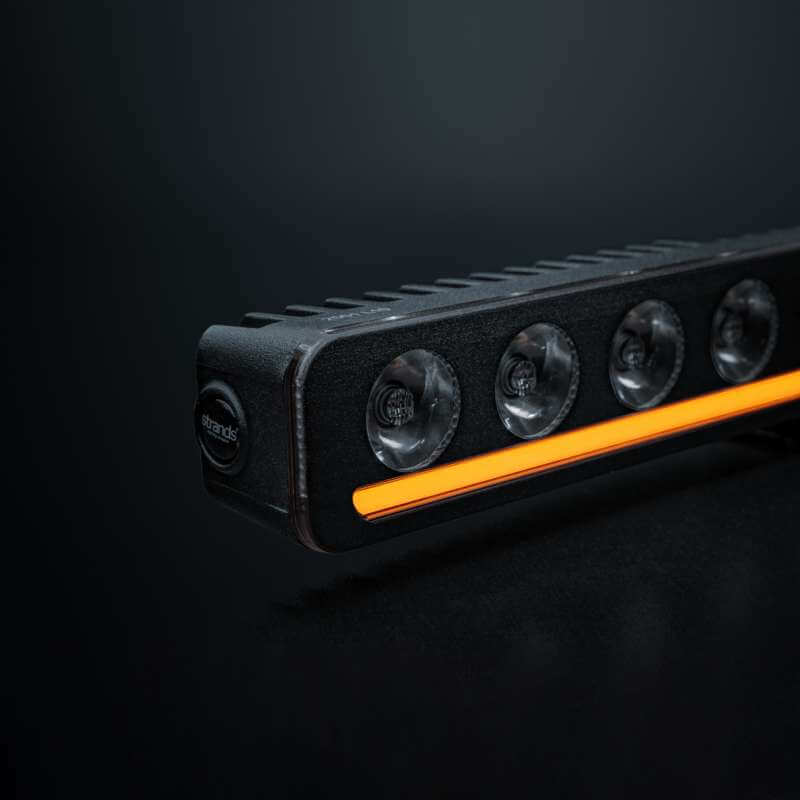

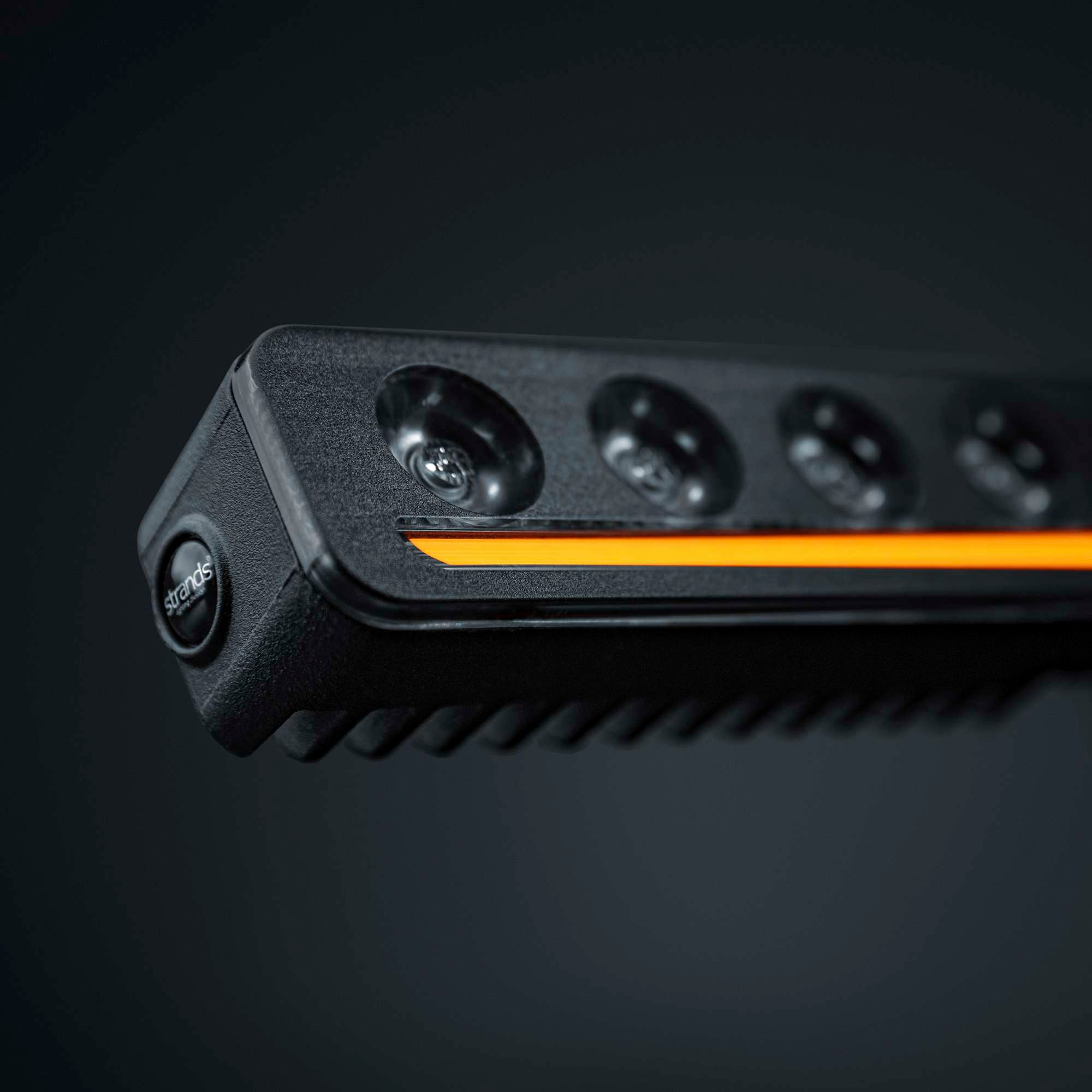

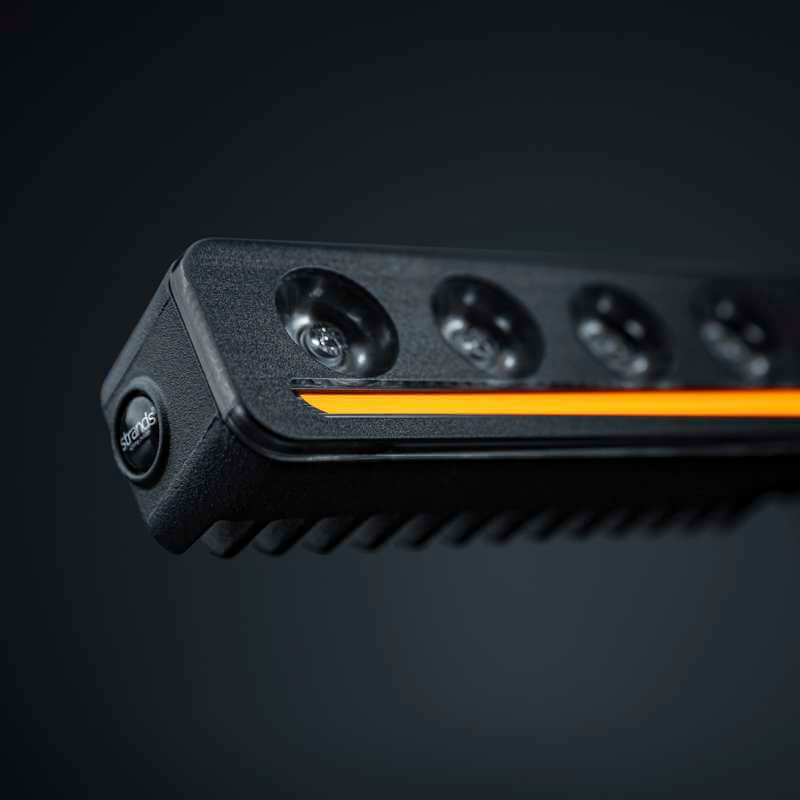

The integrated white and amber position light ensures a distinctive appearance and additional visibility. Thanks to the integrated relay and complete mounting kit, installation is quick. Developed by Strands Lighting Division and backed by a 3-year warranty, this Strands Lightbar is a reliable solution for road and off-road.

Unit
PCS
Voltage (DC) (V DC)
10-36
Theoretical effect (W)
216
Consumption (W)
200
Functions
Xperience modeE-approved modeWhite pos.Amber Pos.
Consumption specific function
X-mode 200WE-mode 38WWhite pos. 16.5WAmber pos. 17W
Theoretical lumen (lm)
21000
Actual lumen (lm)
19600
1 lux @ (m)
580
Color temperature (K)
5000
Beam pattern
Extended Beam
Beam angle (°)
30.8
Connection
Cable
Cable length (mm)
2500
Color housing
Black
Color lens
Black

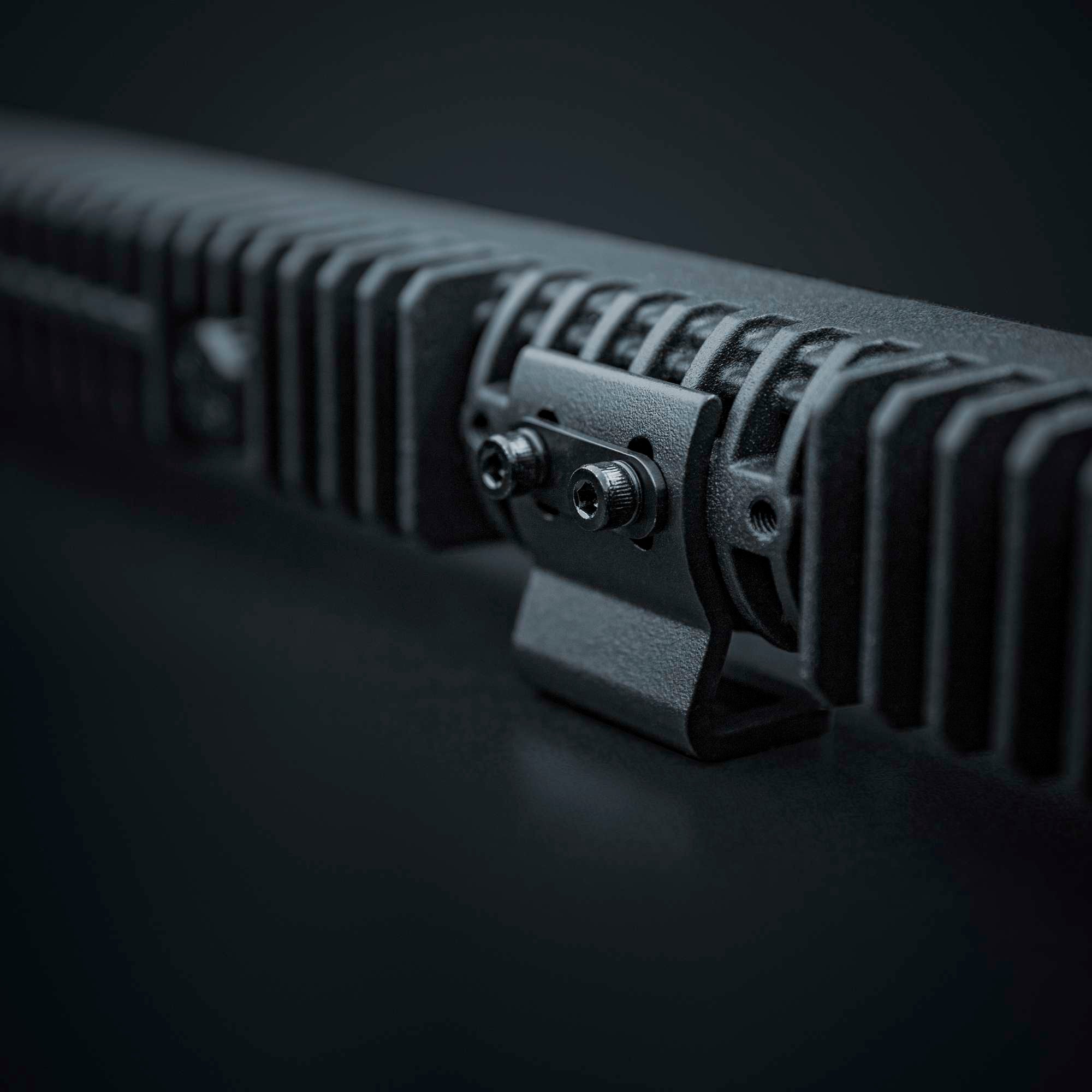

Material bracket
Stainless steel
Material housing/chassi
Aluminum
Material lens
Polycarbonate

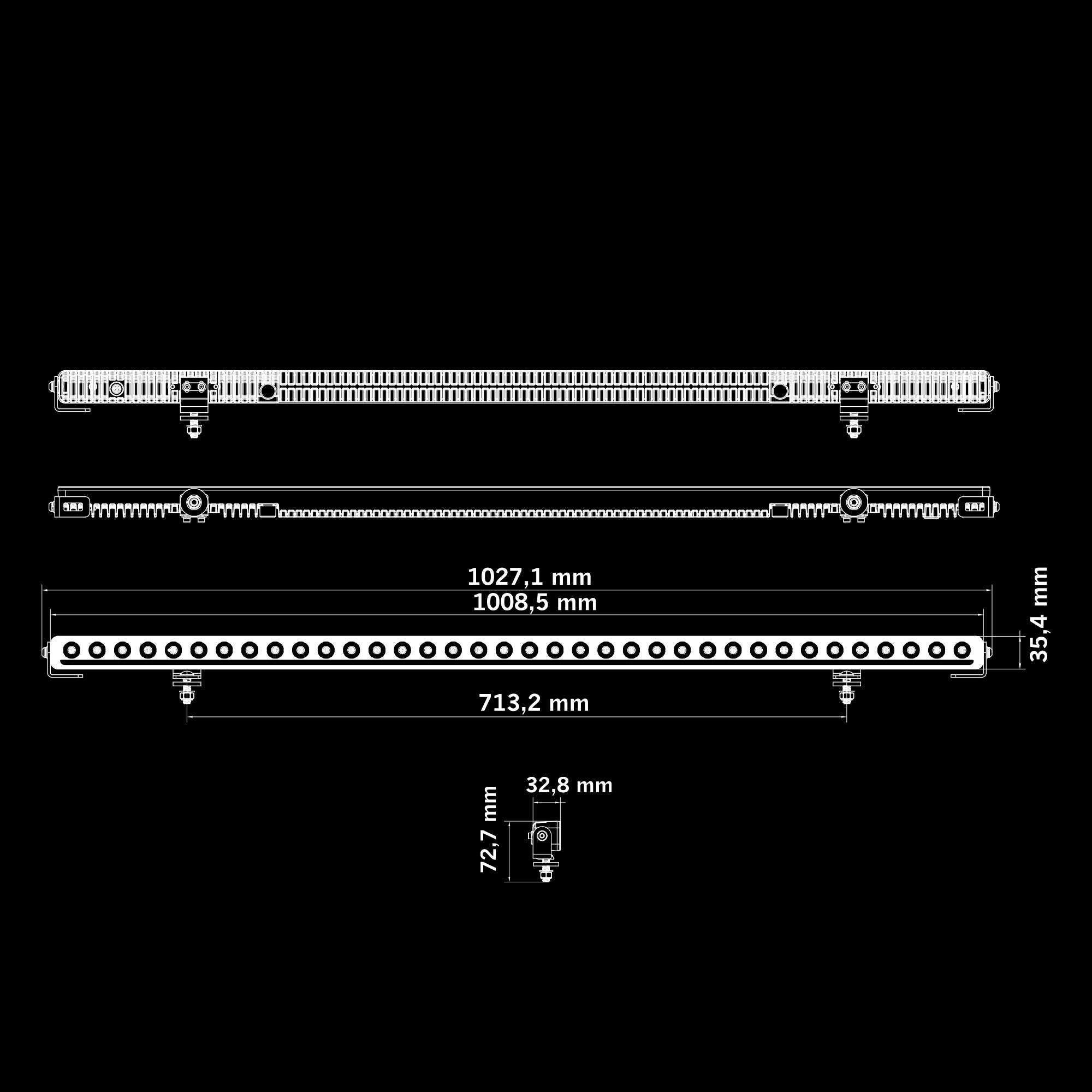

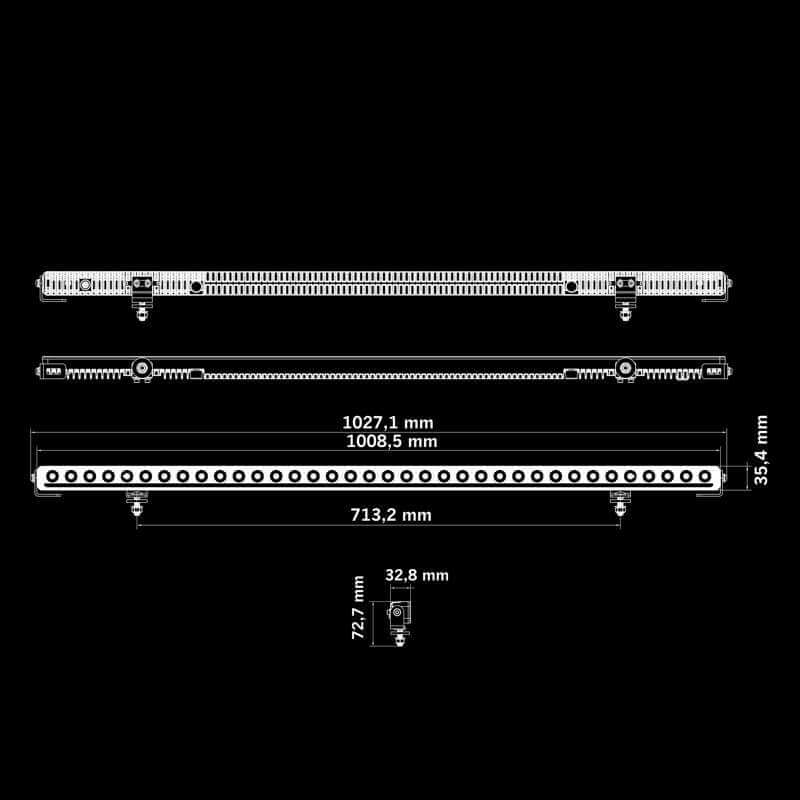

Length (mm)
1008.5
Depth (mm)
32.8
Height (mm)
35.4
Height including bracket (mm)
44.5
Weight (kg)
2.3
IP-class
IP68/69K
Operating temperature (°C)
-40 - +60
E-approved
Yes
ECE approval
R10.06R148R149
Reference number
20

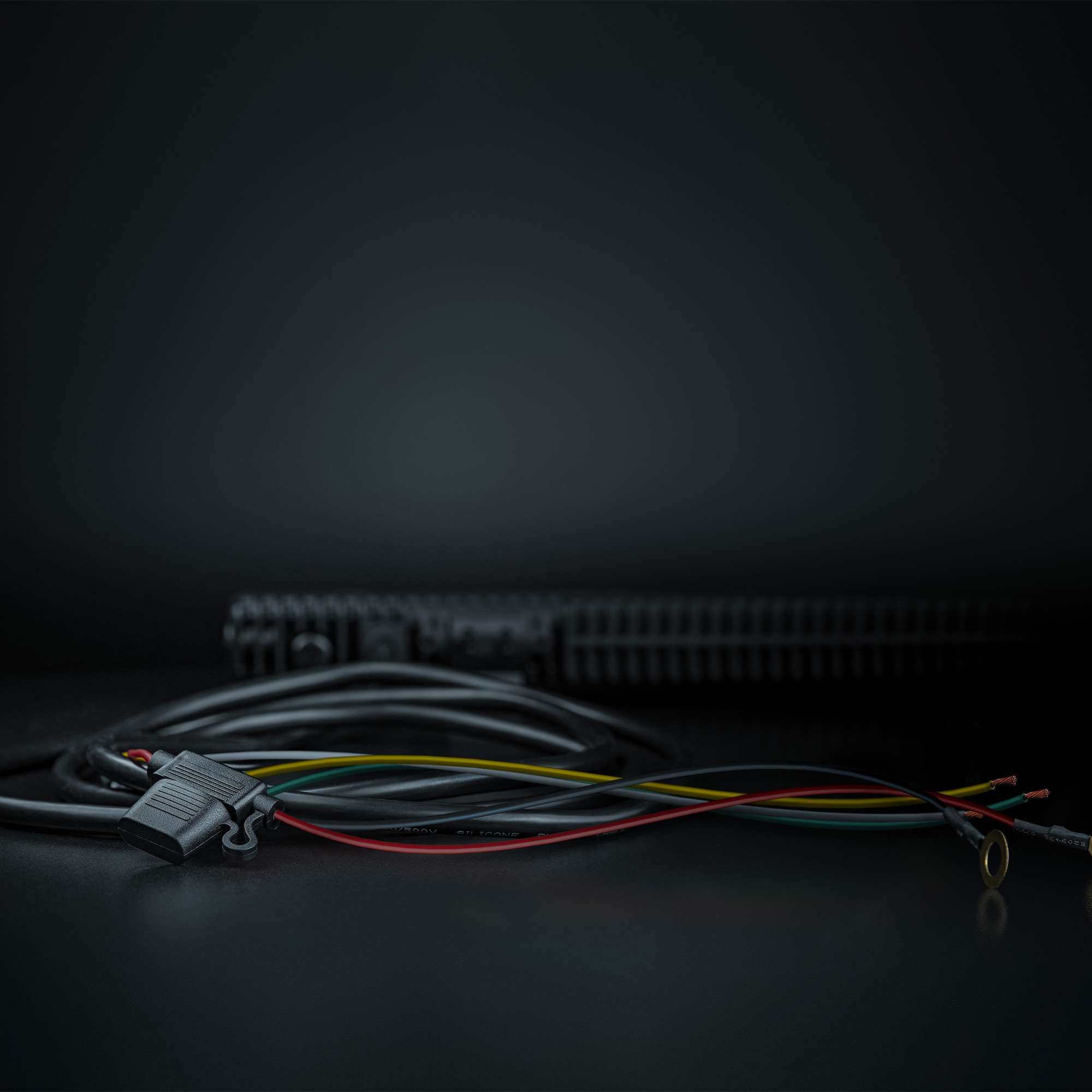

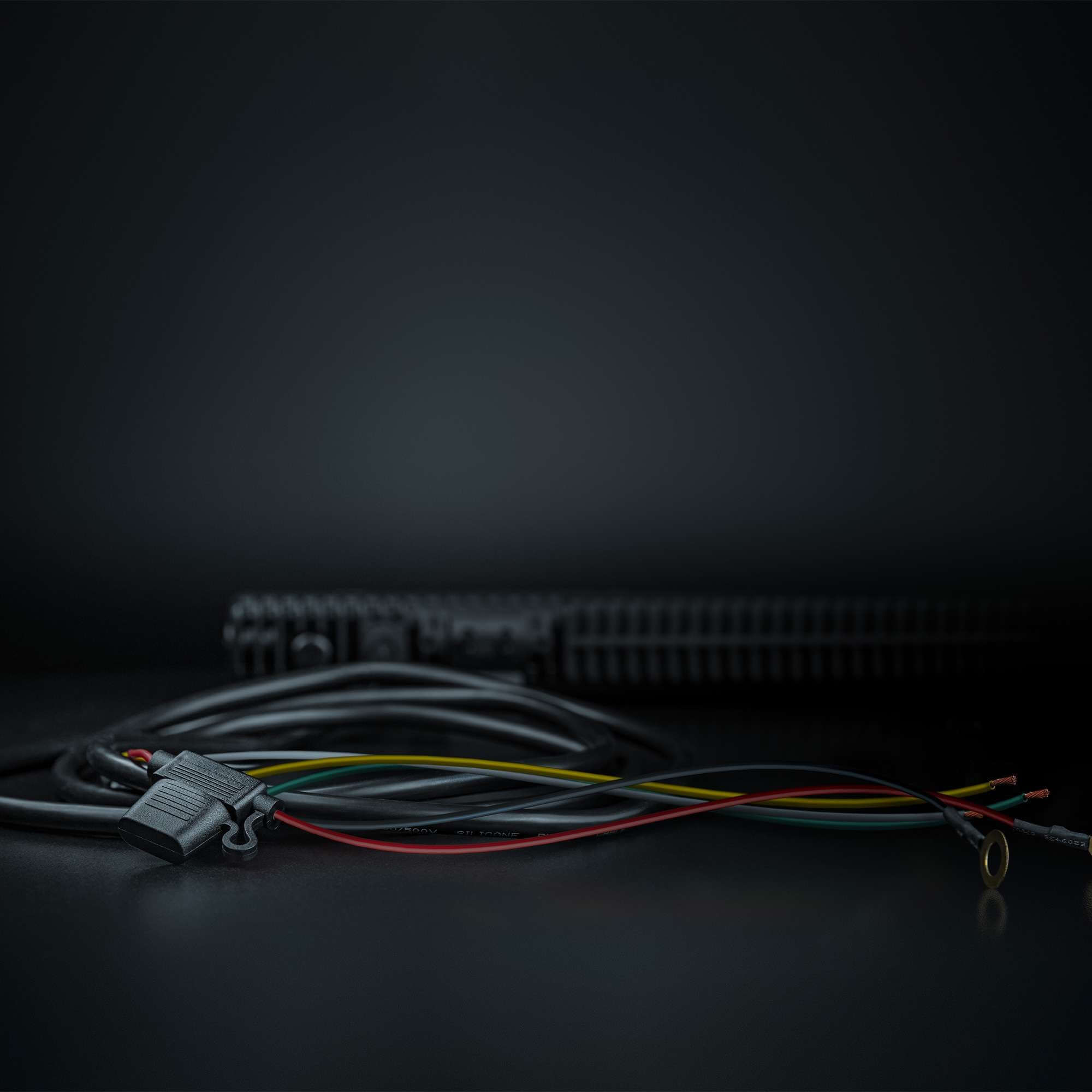

Cable assignment

Black
- (Negative)
Red
+ (Positive)
White
+ (weiße Positionsleuchte)
Yellow
+ (Amber position light)
Green
+ (on/off signal line for high beam)
Manual Product sheet
