Strands SIBERIA XP SR LED BAR 22″

10-32 V
105 W
7150 lm
IP68/69K
Sale price3,239 kr Regular price3,719.00 kr
Save 480.00 kr

Tax included. Free Shipping from €300*

In stock – estimated delivery in 3 to 5 working days
Strands SIBERIA XP SR LED BAR 22″ – Video

GTIN: 7323030192600SKU: 809412

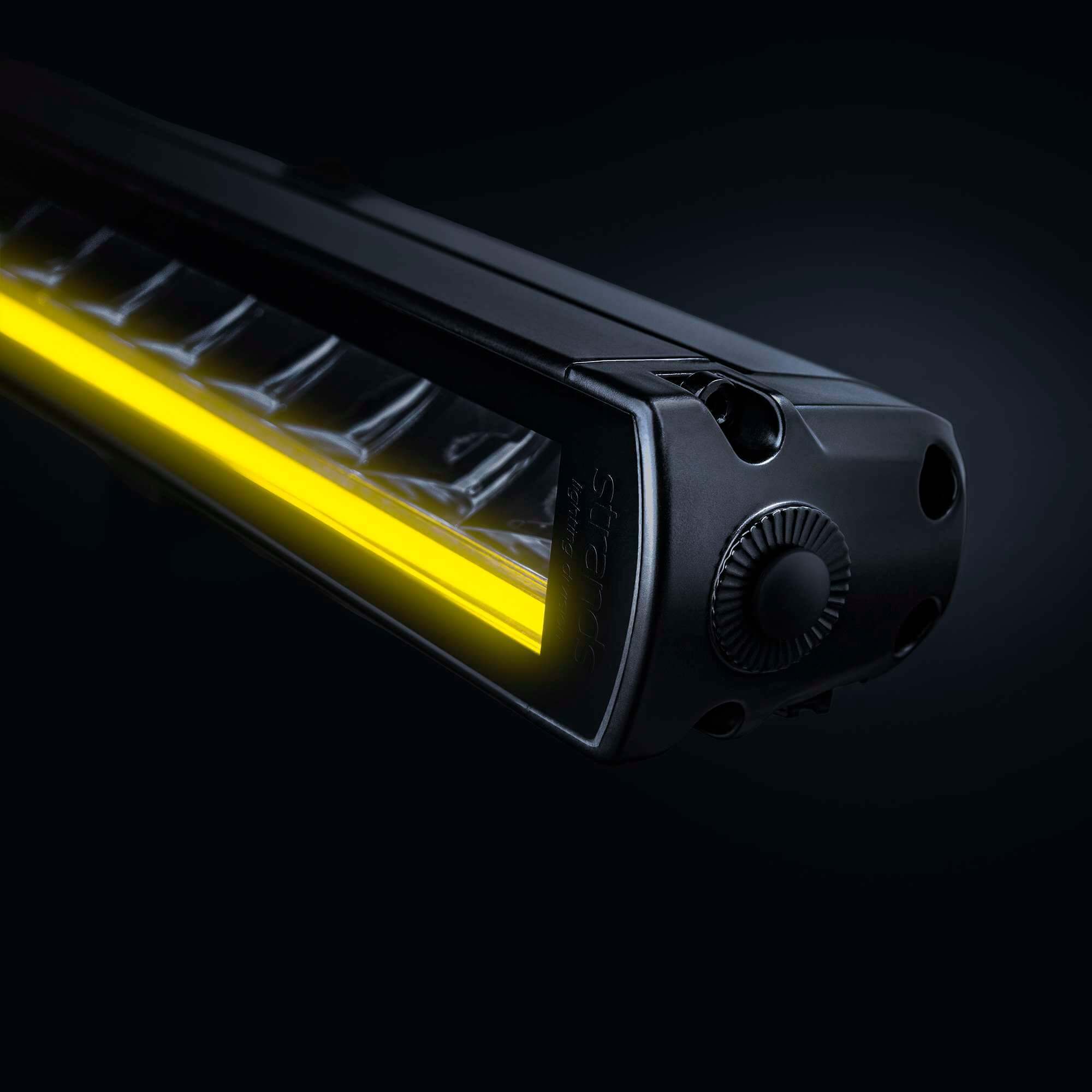

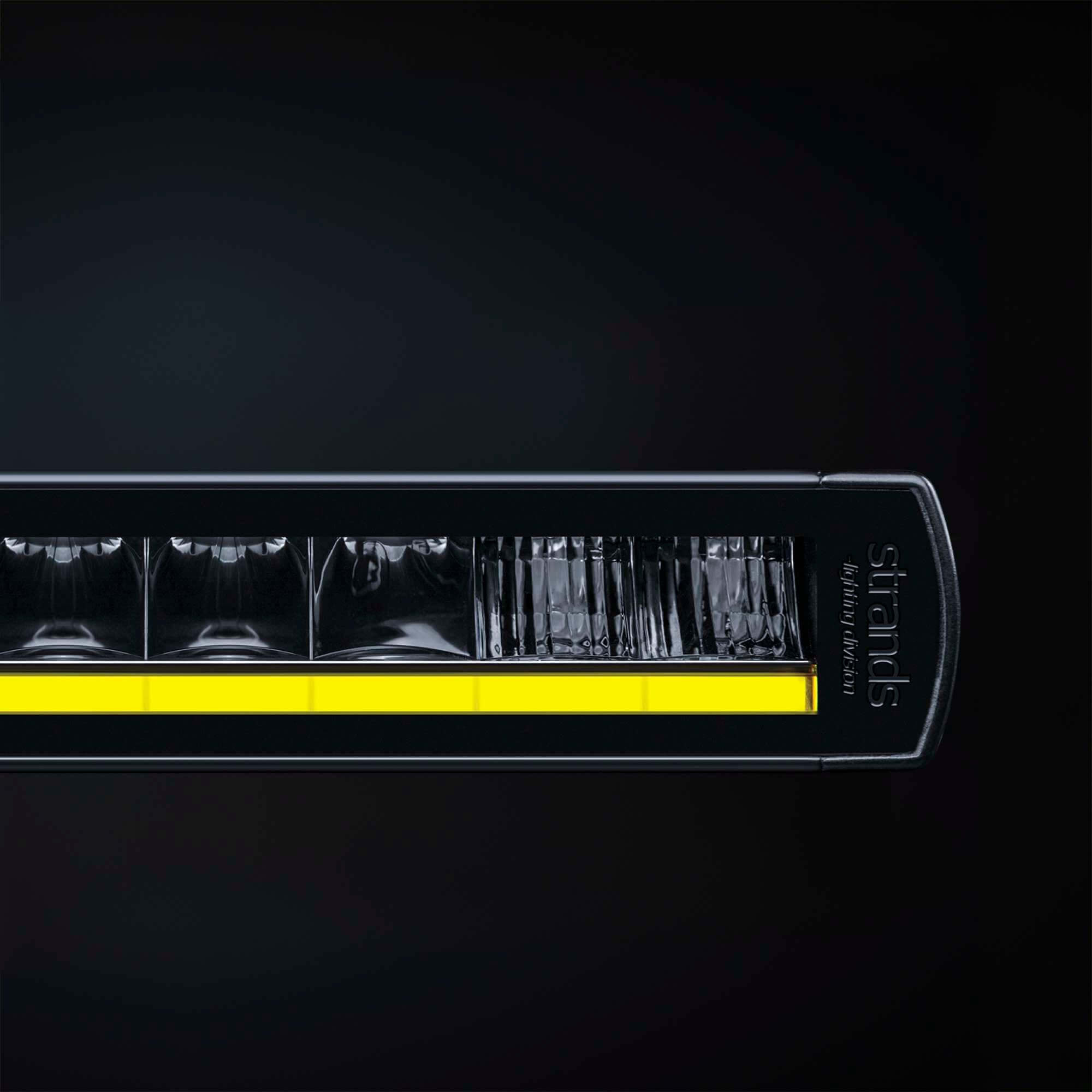

The Strands Siberia XP Single Row 22" LED auxiliary light combines compact design with powerful light output and modern optics. The integrated white and amber position light ensures an individual look and additional visibility on the road.

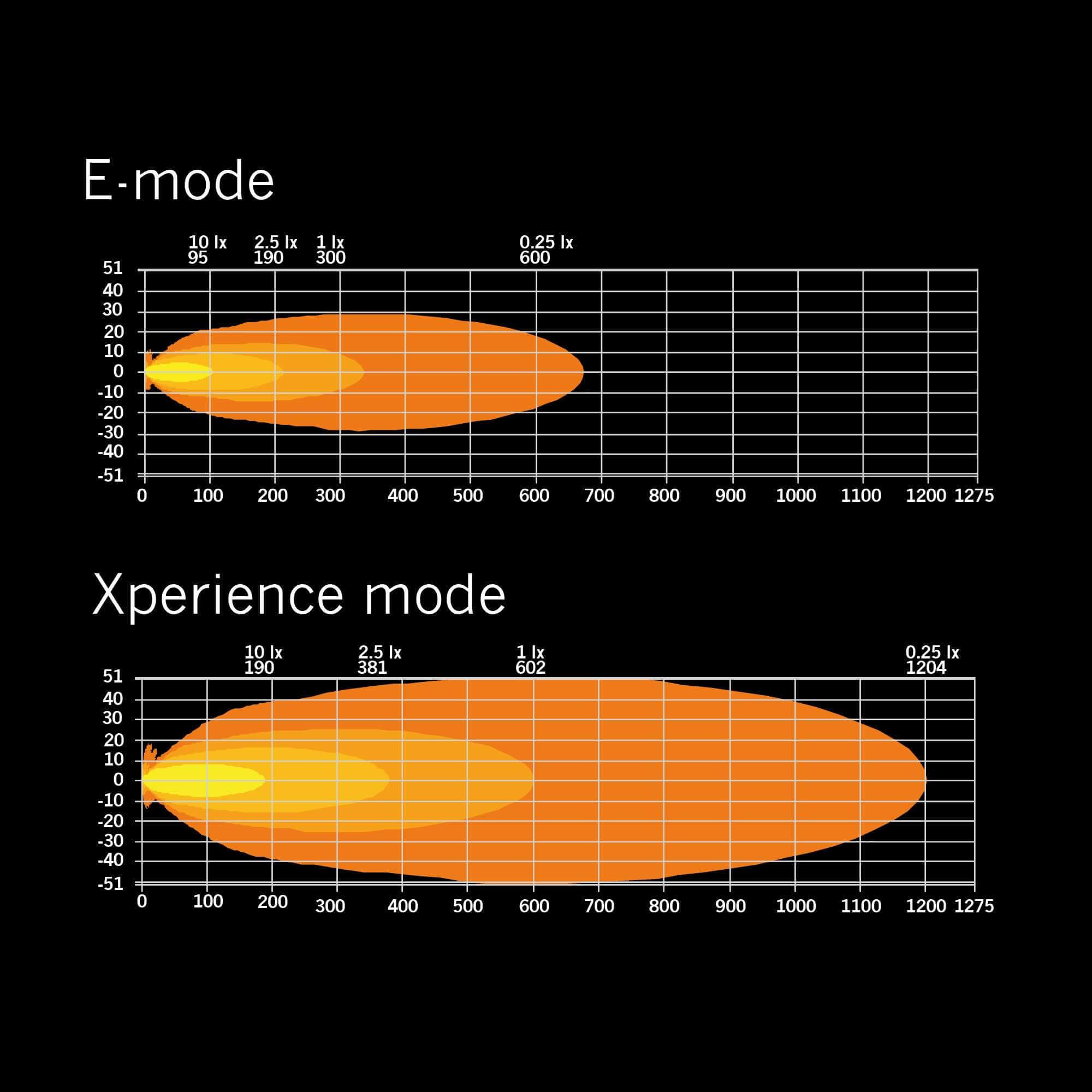

The 22-inch model delivers 1,875 lumens in E-mode and 7,150 lumens in Xperience mode. With a range of up to 602 meters and a color temperature of 5,700 Kelvin, the Strands LED Lightbar produces a clear, high-contrast light pattern for reliable forward visibility. The Hello function also enables simple signaling via the high beam.

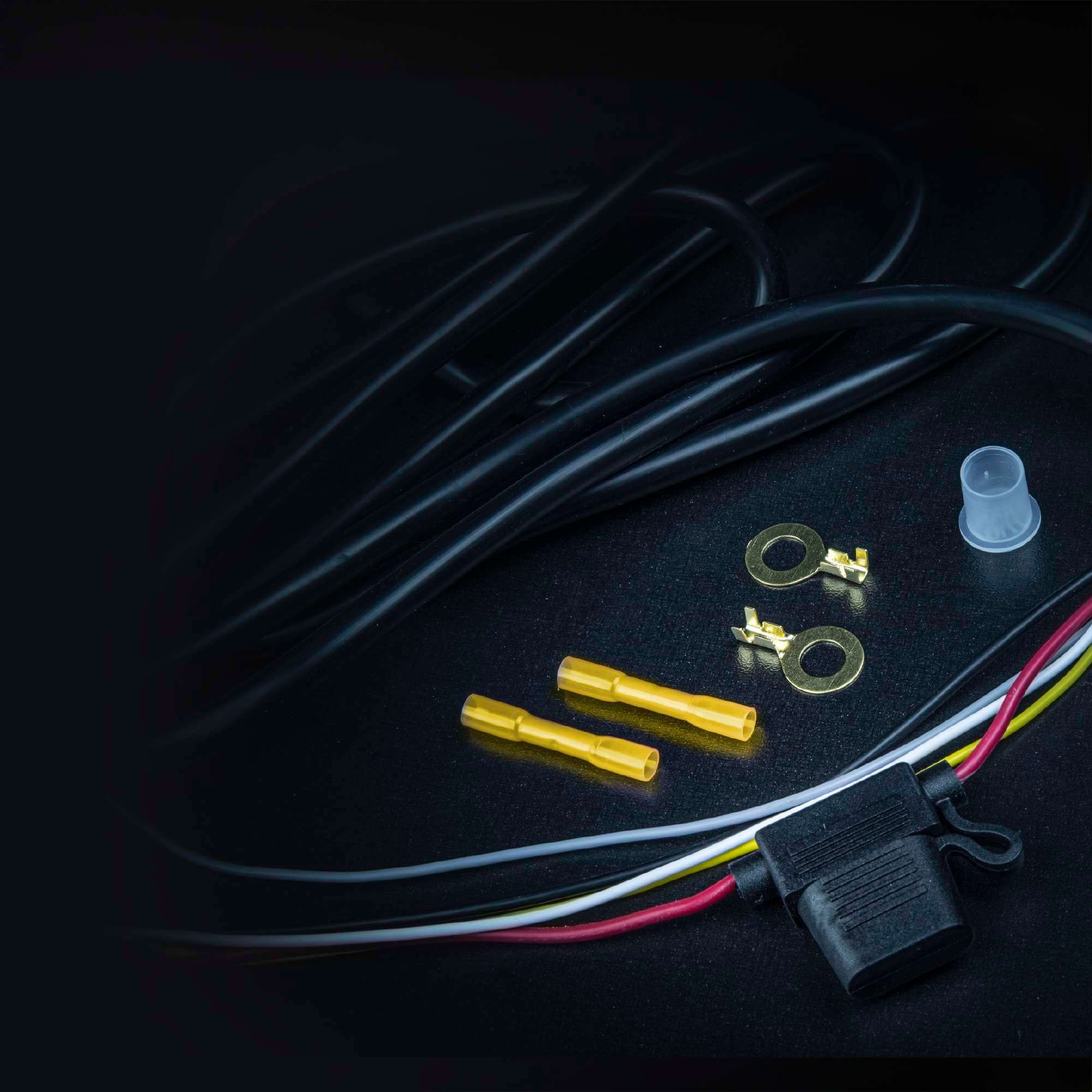

The robust construction is designed for harsh conditions and reliably withstands vibrations, dirt, and water (IP68/IP69K). Thanks to an integrated relay and 2,500 mm cable, the Strands LED auxiliary light can be installed quickly and easily. Developed by Strands Lighting Division and backed by a 3-year warranty, the lightbar meets all relevant ECE standards and is a reliable solution for off-road and everyday use.

Unit
PCS
Voltage (DC) (V DC)
10-32
Consumption (W)
105
Functions
Xperience modeE-approved modeWhite pos.Yellow pos.Hello function
Consumption specific function
X-mode 102WE-mode 25WWhite pos. 9.5WYellow pos. 9.5W
Actual lumen (lm)
7150
1 lux @ (m)
602
Color temperature (K)
5700
Beam pattern
Extended Beam
Beam angle (°)
14.4
Connection
Cable
Cable length (mm)
2500
Color housing
Black
Color lens
Clear
Color LED's
White | Yellow

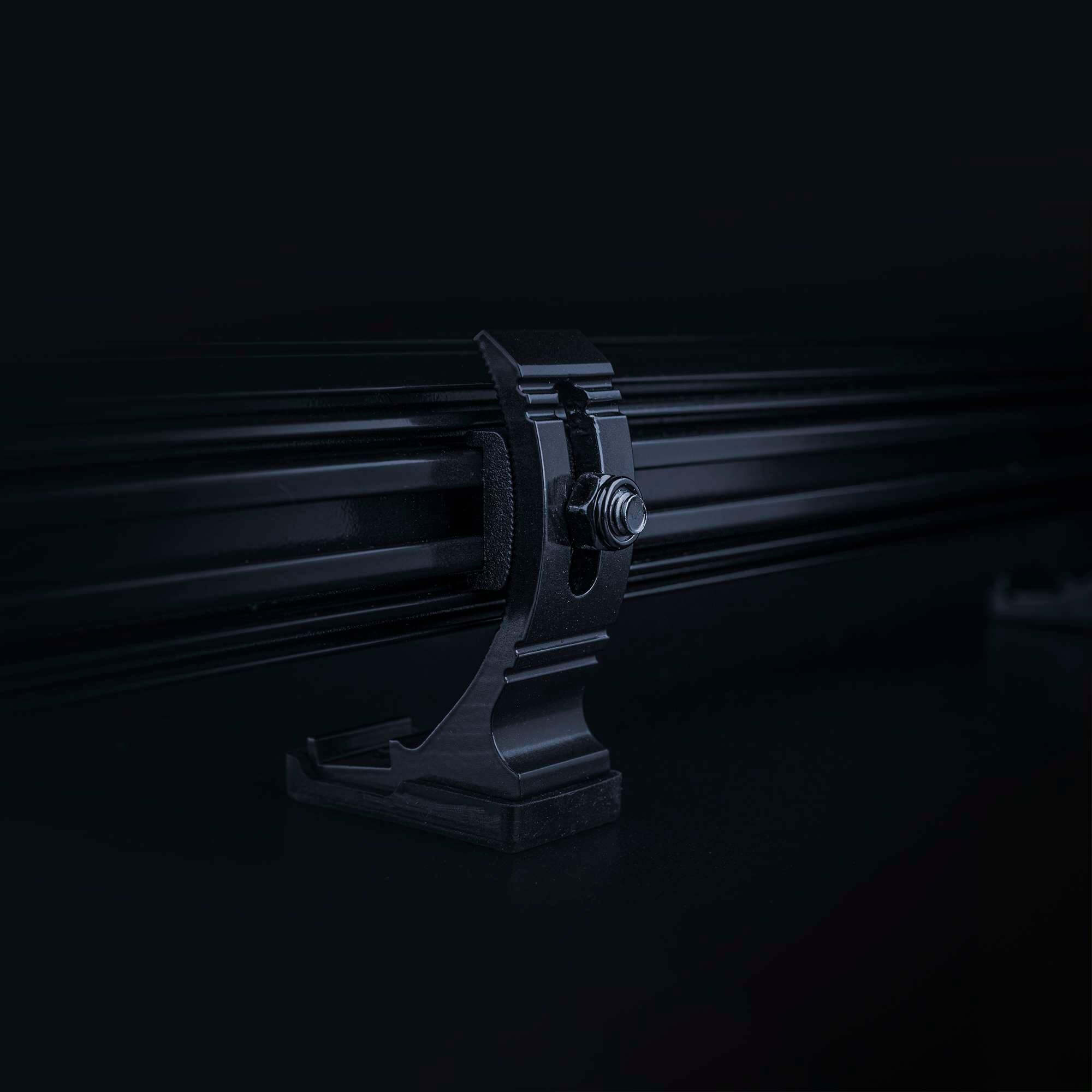

Material bracket
Aluminum
Material housing/chassi
Aluminum
Material lens
Polycarbonate

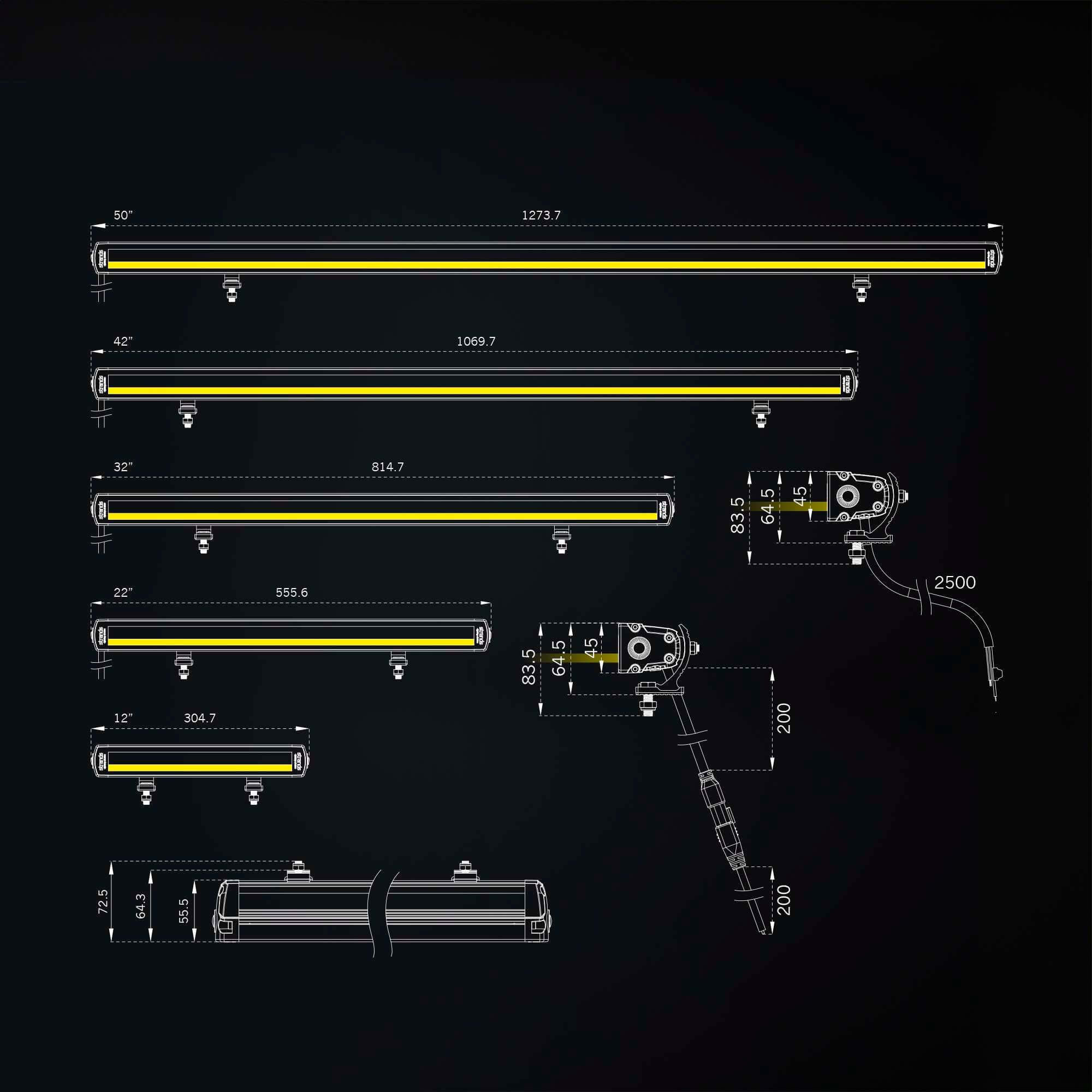

Length (mm)
555.6
Depth (mm)
55.5
Height (mm)
45
Height including bracket (mm)
64.5
Weight (kg)
1.8
IP-class
IP68/69K
Operating temperature (°C)
-35 - +65
E-approved
Yes
ECE approval
R10.06R148R149
Reference number
20

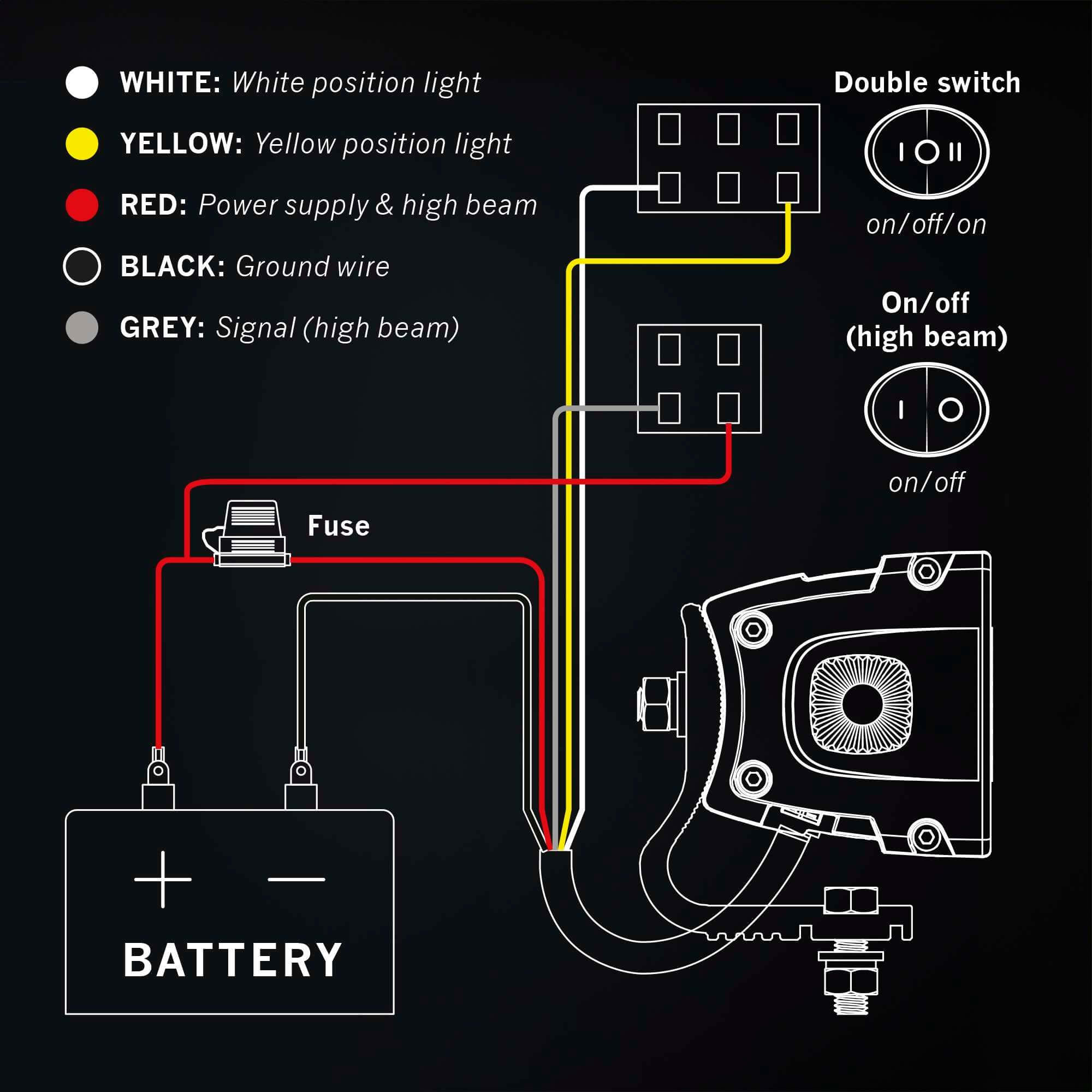

Cable assignment

Black
- (Negative)
Red
+ Positive with fuse
White
White position lamp
Grey
Signal wire connects to +VDC
