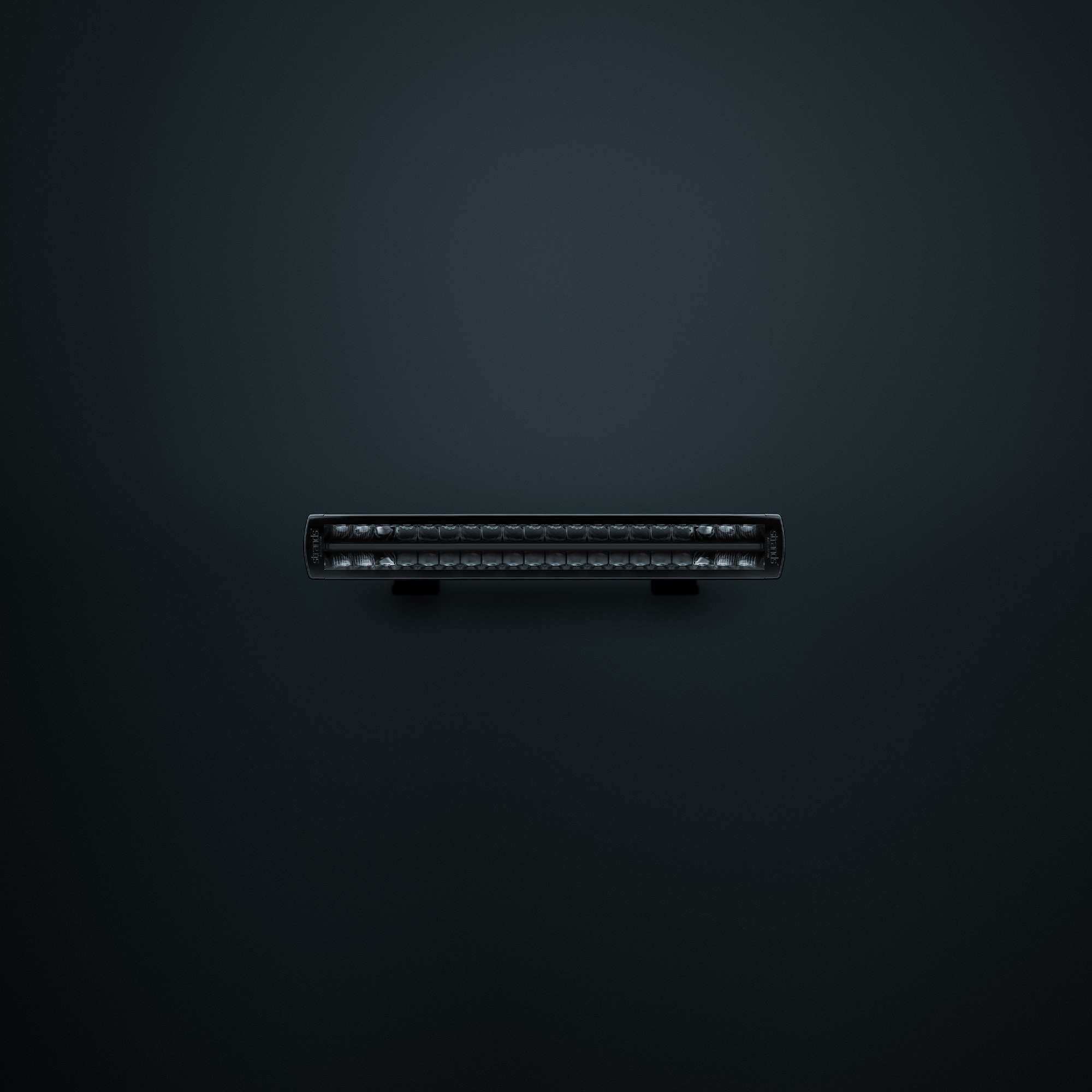

Strands SIBERIA XPA DR LED BAR 22″

10-32 V
149 W
11500 lm
IP68/69K
Sale price3,959 kr Regular price4,463.00 kr
Save 504.00 kr

Tax included. Free Shipping from €300*

In stock – estimated delivery in 3 to 5 working days
Strands SIBERIA XPA DR LED BAR 22″ – Video

GTIN: 7323030194246SKU: 809427A

The Siberia XPA DR LED bar 22" combines strong performance with a far-reaching light pattern. With over 11,500 lumens in Xperience mode and a range of more than 760 meters, it delivers significantly improved illumination – around 100% more output compared to previous models.

The color temperature of 5700 K ensures clear and bright visibility. The integrated position light in white and amber also gives your vehicle a striking look. A special highlight is the Hello function: by pressing the high beam twice, a dynamic signal is activated via the position lights.

Robust materials, a durable lens, and a stable housing make the LED bar particularly long-lasting and vibration-resistant. The powder coating reliably protects against weather and demanding conditions. With protection class IP68/IP69K, it is optimally protected against water and dirt.

Installation is easy via a 550 mm cable with DT-4 connector. The LED bar is E-marked according to ECE R148 (R7), R149 (R112) as well as ECE R10 and is therefore approved for road traffic.

As with all Strands products, you also benefit from a 3-year warranty here.

Unit
PCS
Voltage (DC) (V DC)
10-32
Theoretical effect (W)
200
Consumption (W)
149
Functions
Xperience modeE-approved modeWhite Pos.Amber Pos.Hello function
Consumption specific function
X-mode 149WE-mode 22WWhite pos. 17WAmber pos. 18W
Theoretical lumen (lm)
13514
Actual lumen (lm)
11500

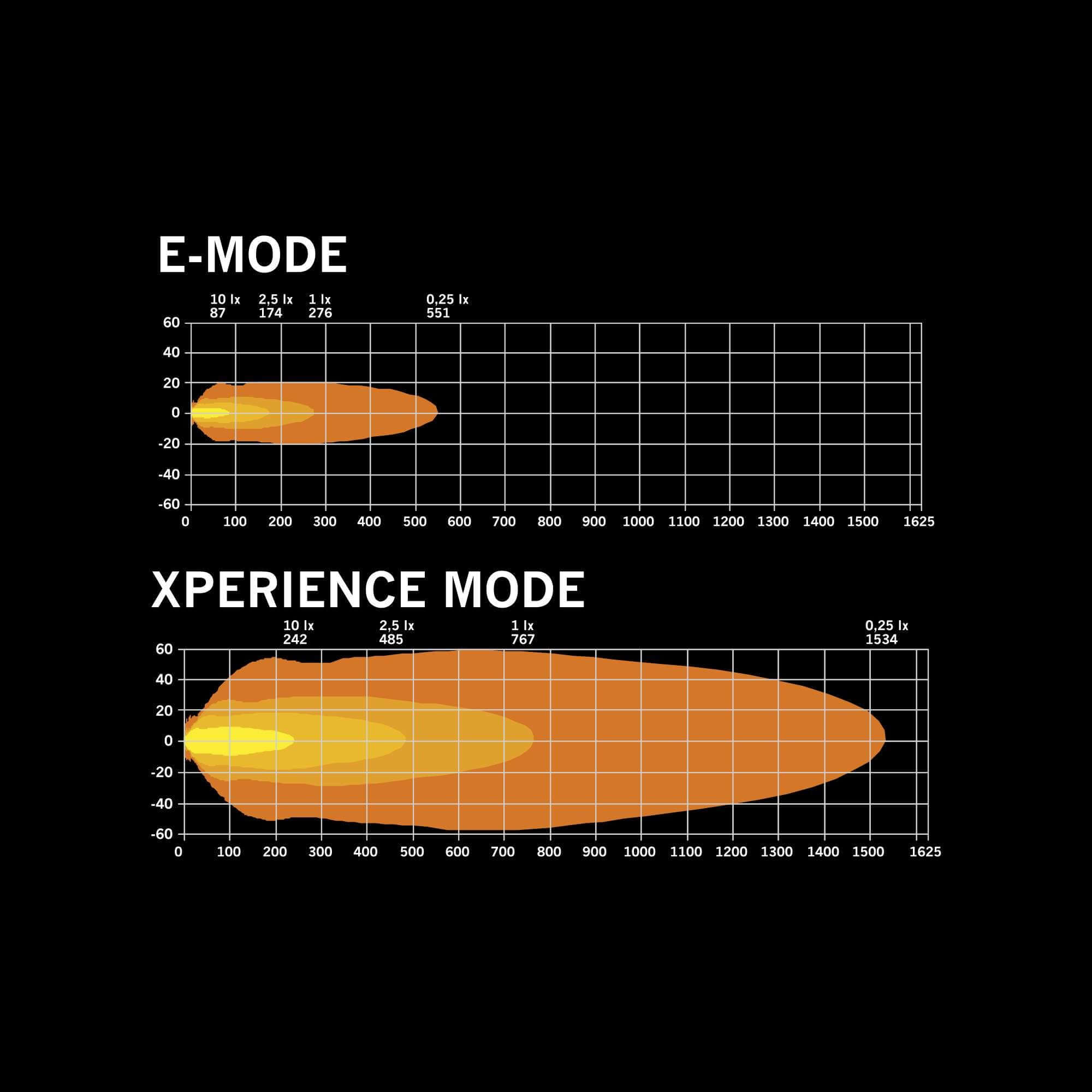

1 lux @ (m)
767
Color temperature (K)
5700
Beam pattern
High Beam
Beam angle (°)
12.7
Connection
DT-4PIN
Cable length (mm)
550
Color housing
Black
Color lens
Clear
Color LED's
White | Amber
Material bracket
Aluminum alloy
Material housing/chassi
Aluminum
Material lens
Polycarbonate
Length (mm)
565.4
Depth (mm)
71.6
Height (mm)
76
Height including bracket (mm)
96.6
Weight (kg)
2.6
IP-class
IP68/69K
Operating temperature (°C)
-35 - +60
E-approved
Yes
ECE approval
R10.06R148R149
Reference number
20

Cable assignment

Black
- (Negative)
Red
+ (Positive)
White
(+) White position lamp
Yellow
(+) Amber position light
