10-32 V
170 W
15800 lm
IP68/69K
Sale price6,719 kr Regular price7,127.00 kr
Save 408.00 kr

Tax included. Free Shipping from 5400 kr*

Available from early July 2026
In stock – estimated delivery in 3 to 5 working days
Strands SKYLORD LED BAR 20″ – Video
GTIN: 7323030203580SKU: 902001

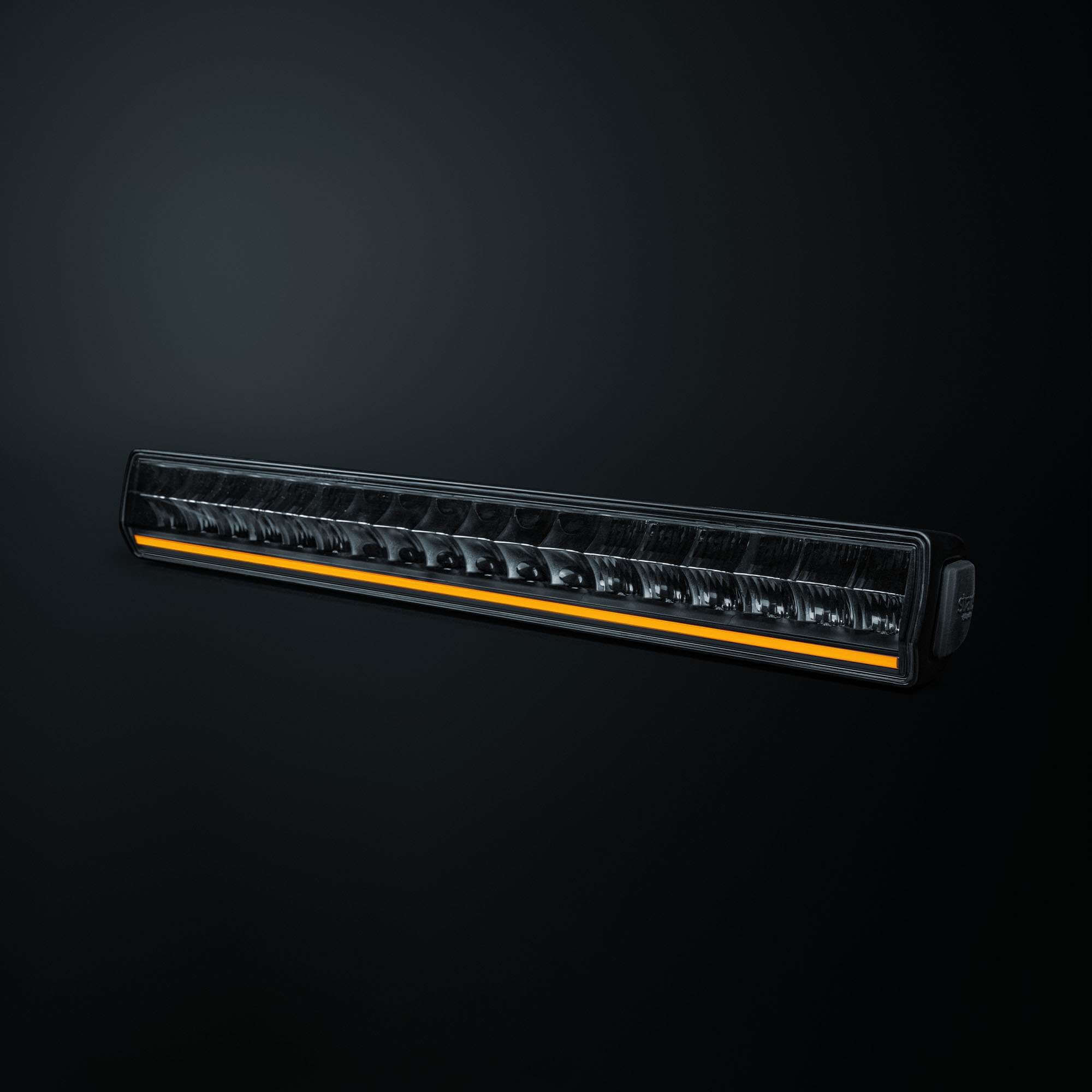

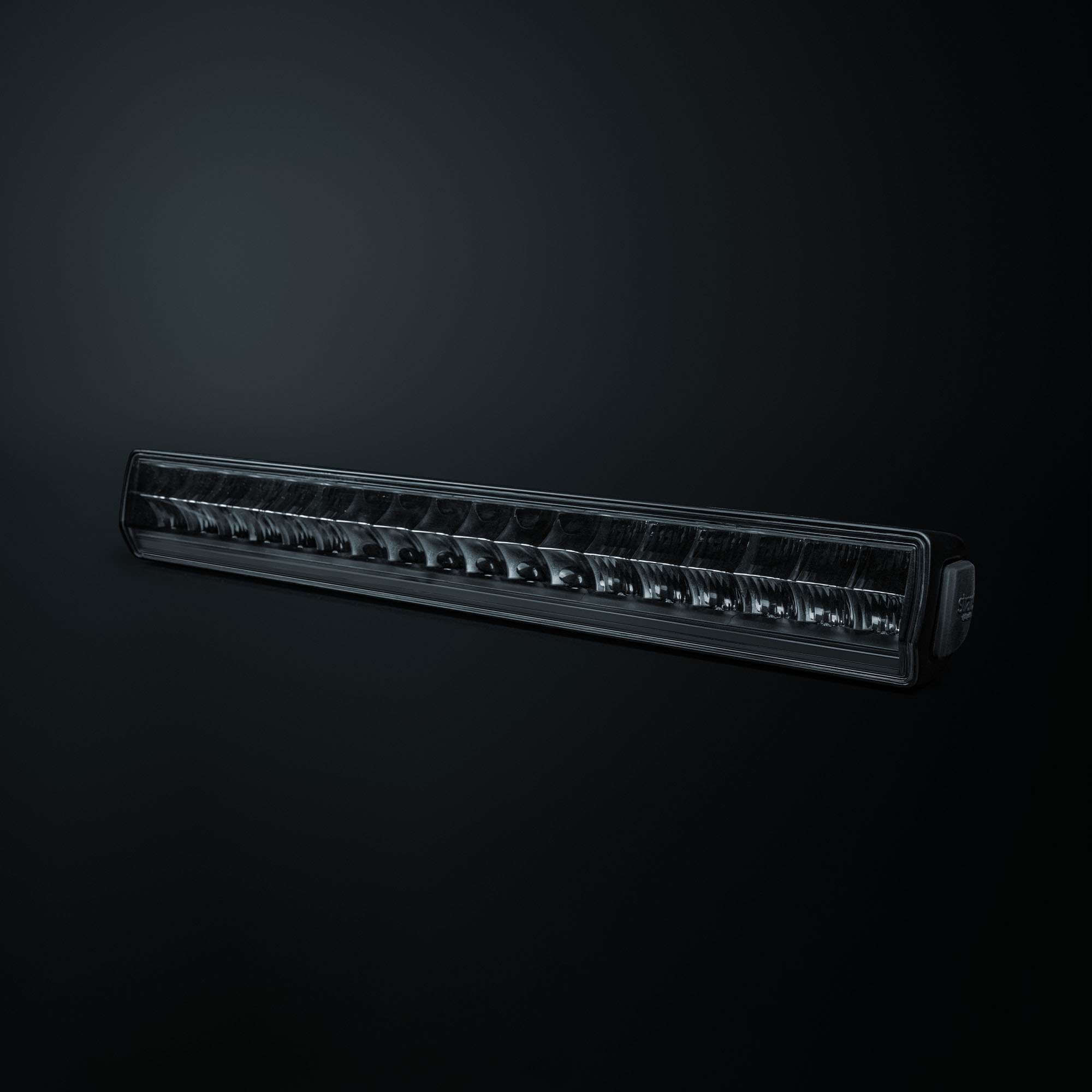

The Strands Skylord 20" LED Lightbar combines a compact design with modern lighting performance, making it ideal for versatile applications on and off-road. With over 15,800 lumens in Xperience mode and a range of up to 780 meters, this Strands LED auxiliary light delivers powerful and uniform illumination.

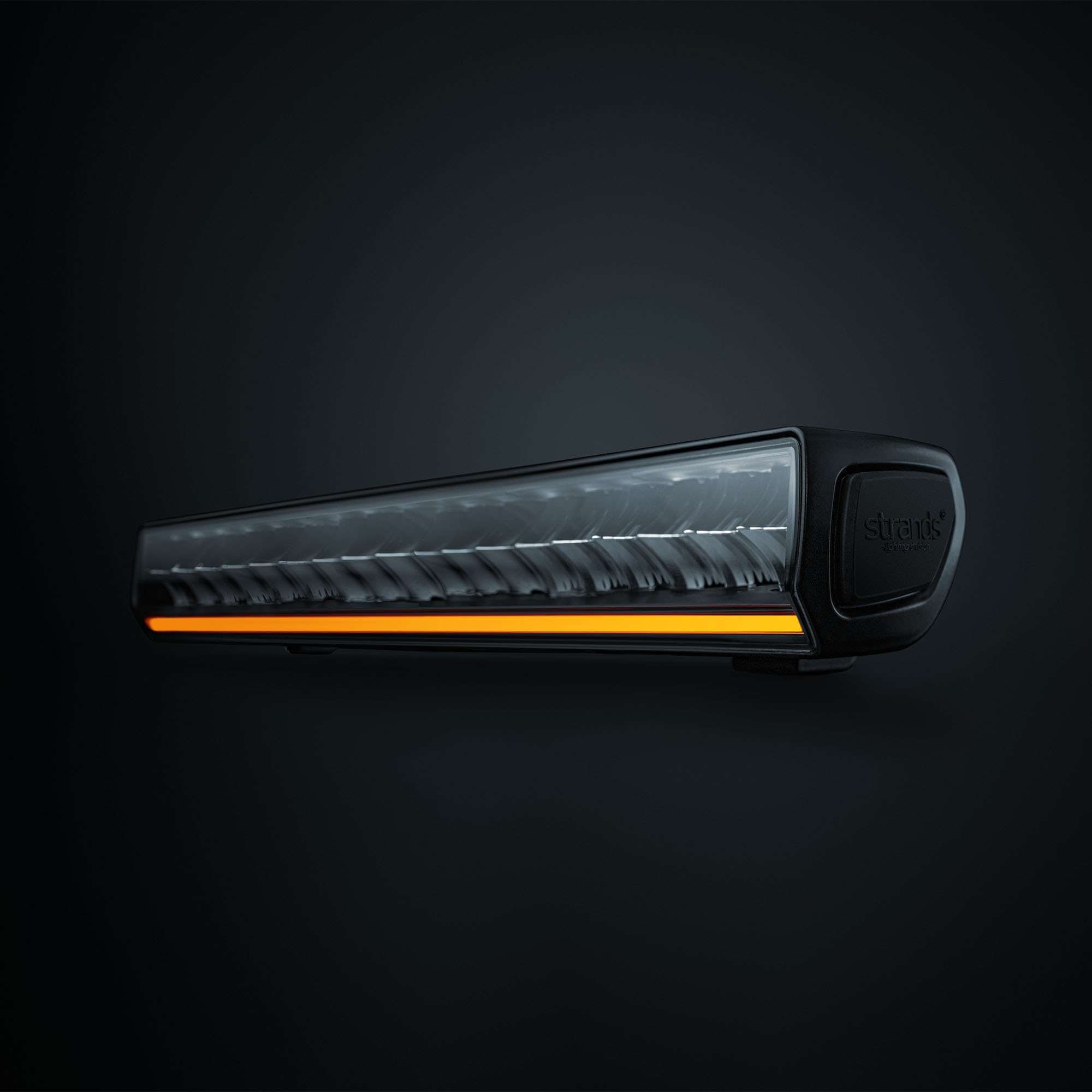

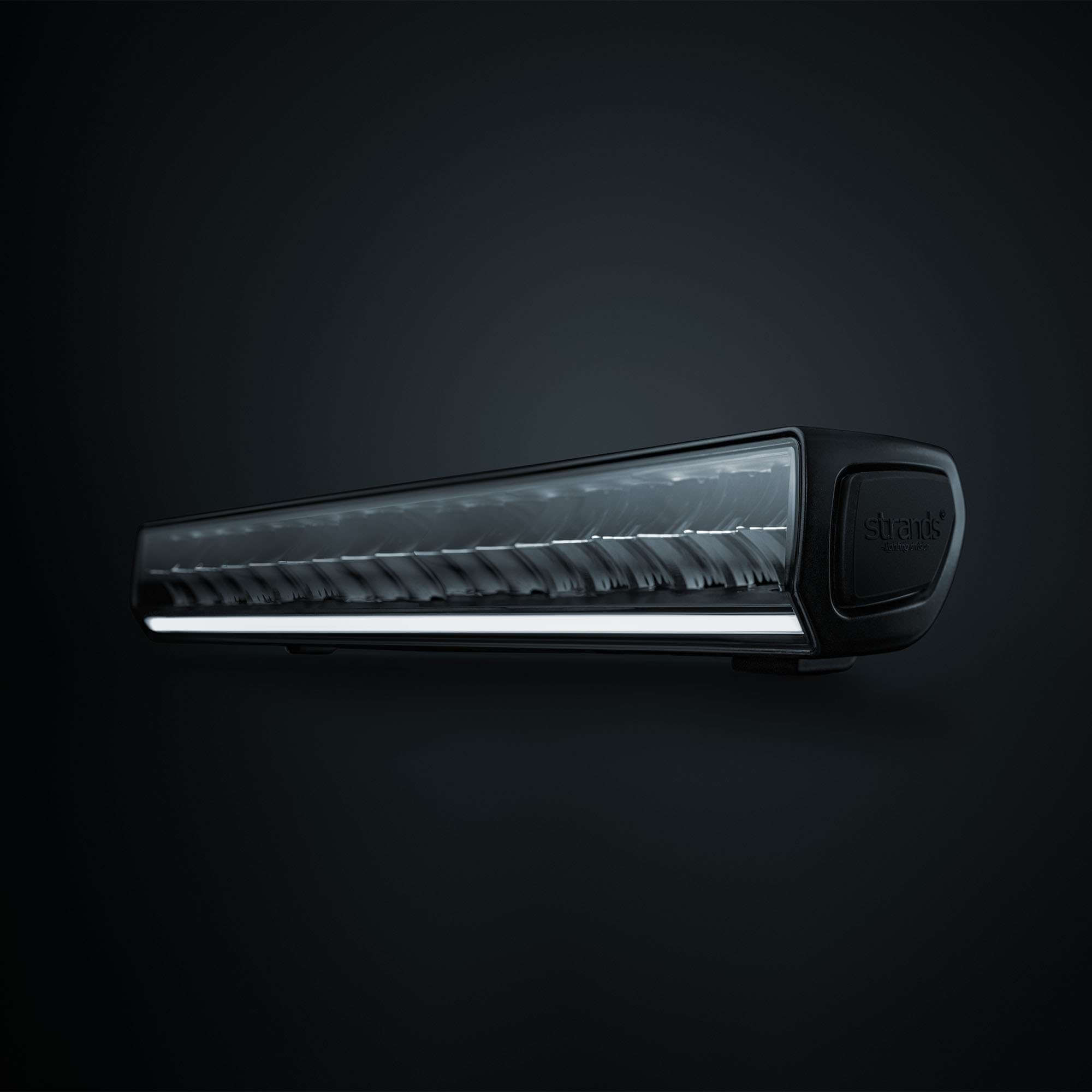

The Strands Lightbar combines E-approved E-mode (R148/R149, Ref. 2x20) with powerful auxiliary light in one system. The newly developed light pattern ensures optimal visibility both at a distance and in the immediate vicinity. This is complemented by white and amber position lights and the integrated Hello function for additional visibility.

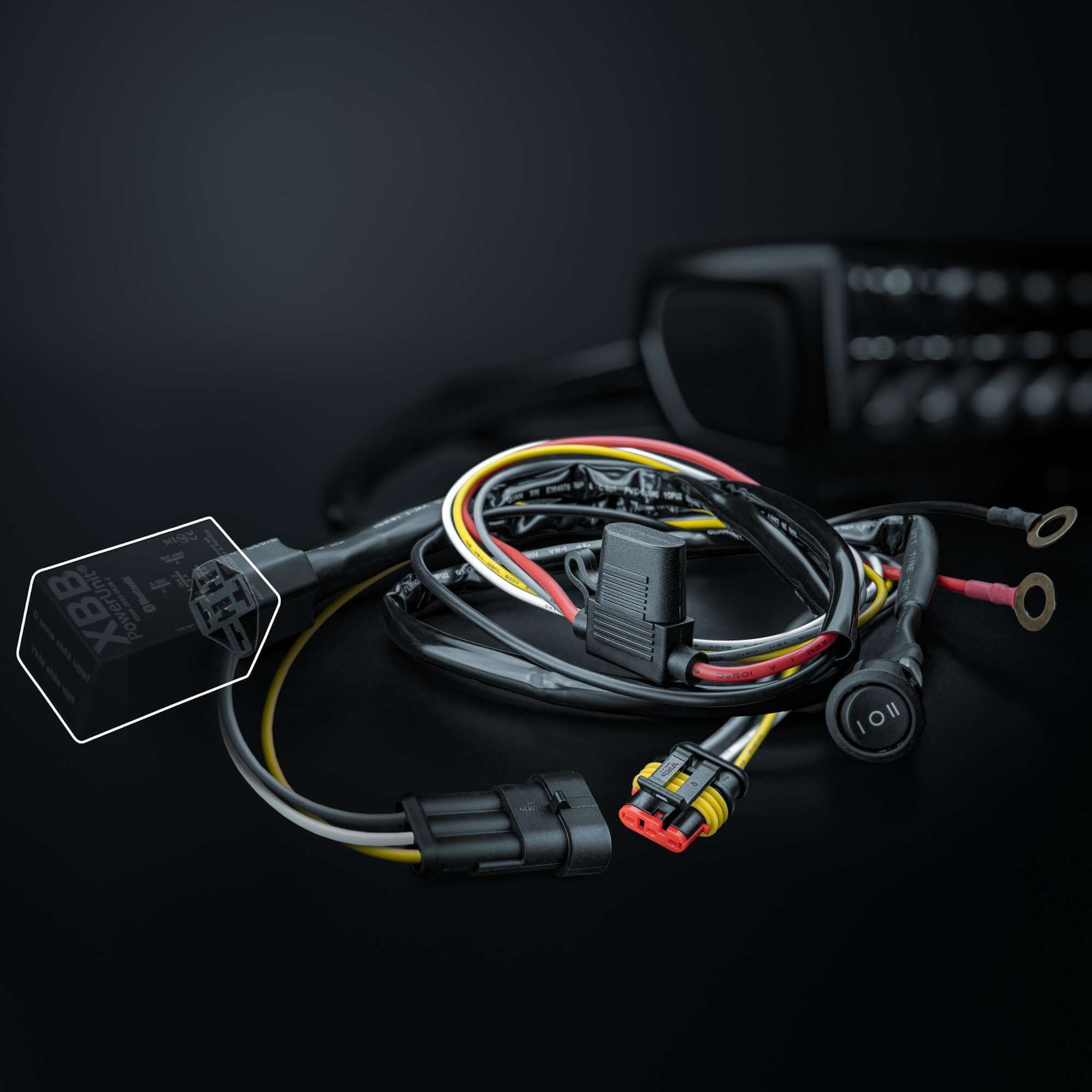

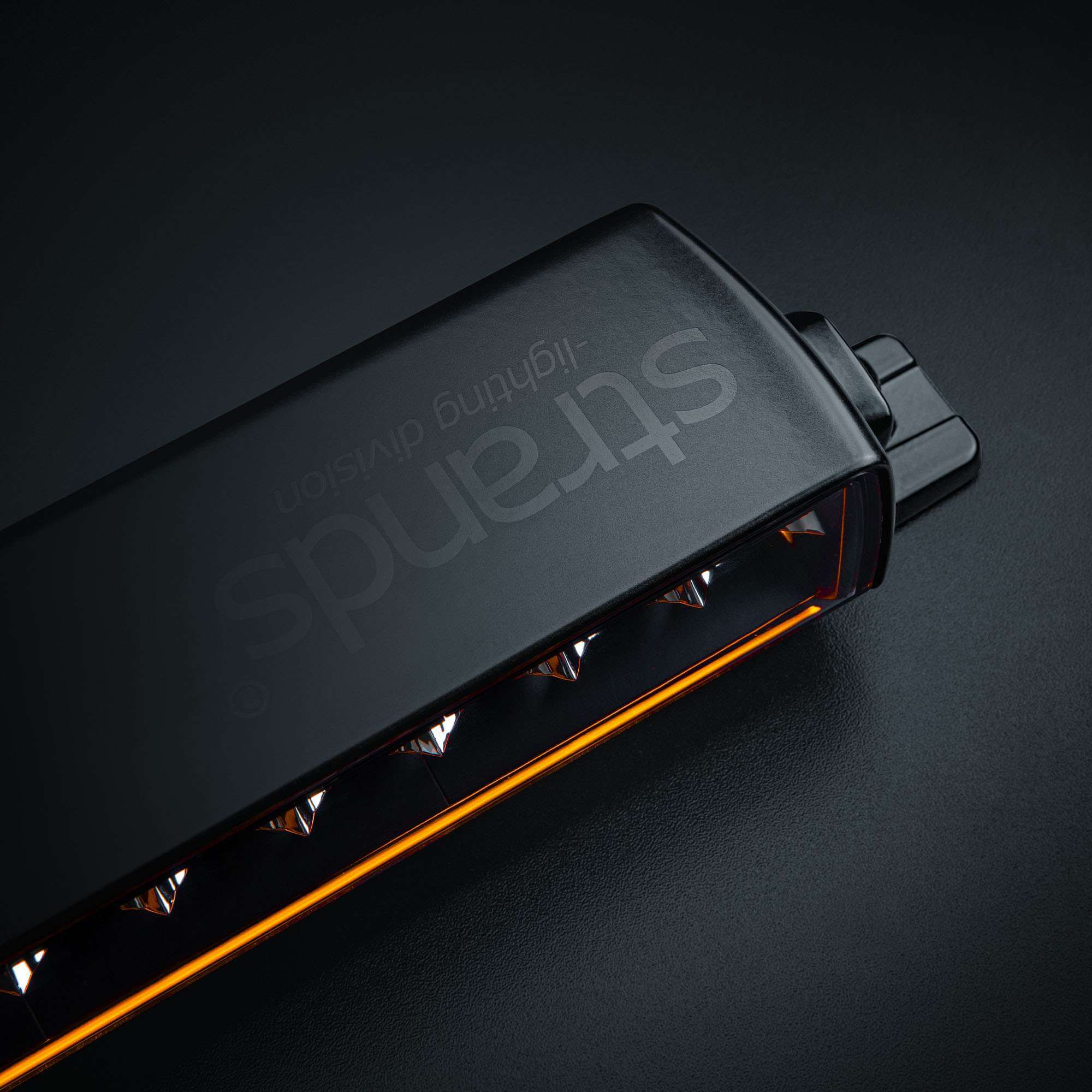

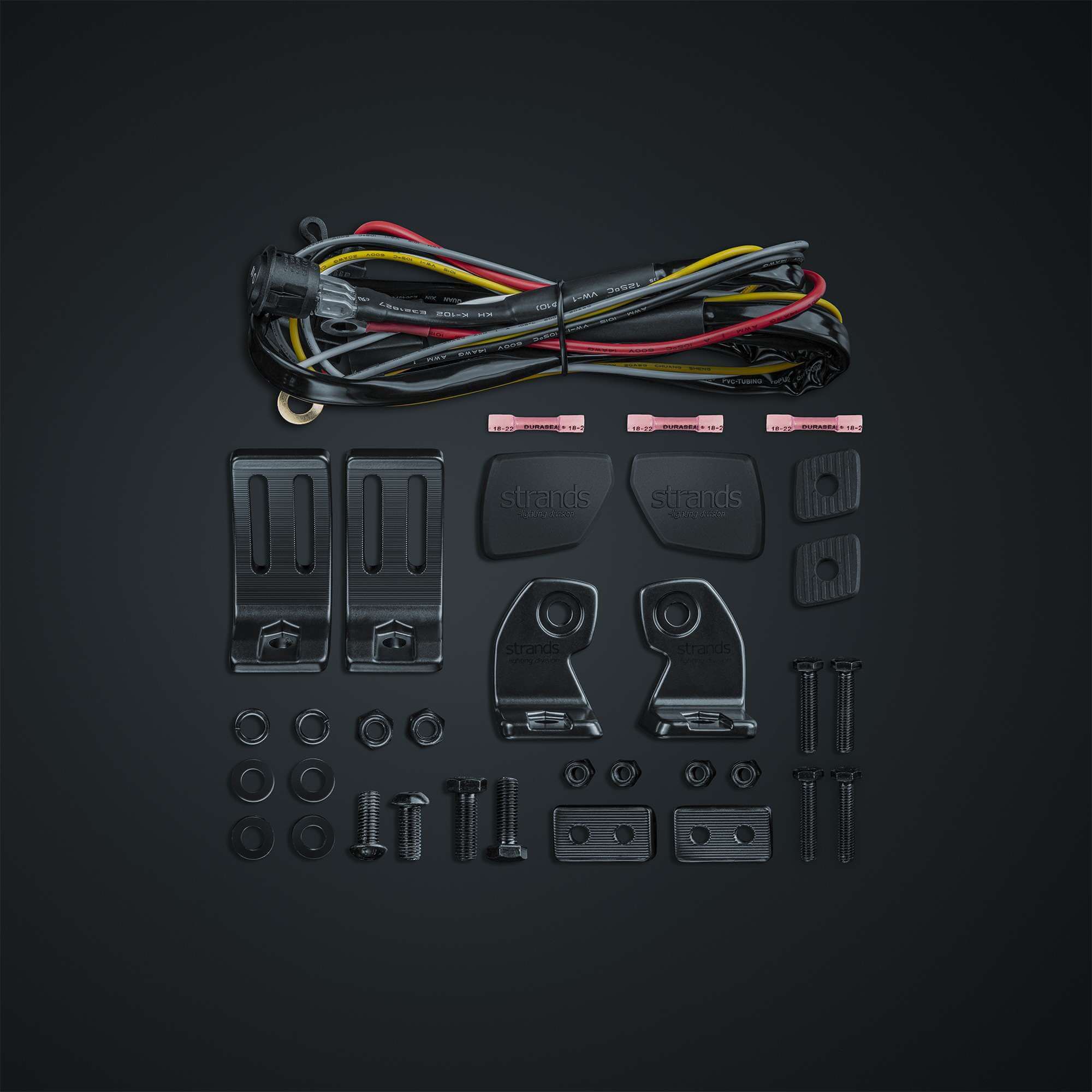

The one-piece housing is particularly robust and offers reliable protection against water and dirt with IP69K. Thanks to the integrated relay and 2,500 mm cable, the Strands LED Lightbar is easy to install. Developed by Strands Lighting Division, this LED auxiliary light is a reliable solution for demanding applications.

Unit
PCS
Voltage (DC) (V DC)
10-32
Theoretical effect (W)
180
Consumption (W)
170
Functions
Xperience modeE-approved modeWhite Pos.Amber Pos.Hello function
Consumption specific function
X-mode 170WE-mode 74WWhite pos. 12WAmber pos. 12W
Theoretical lumen (lm)
23000
Actual lumen (lm)
15800

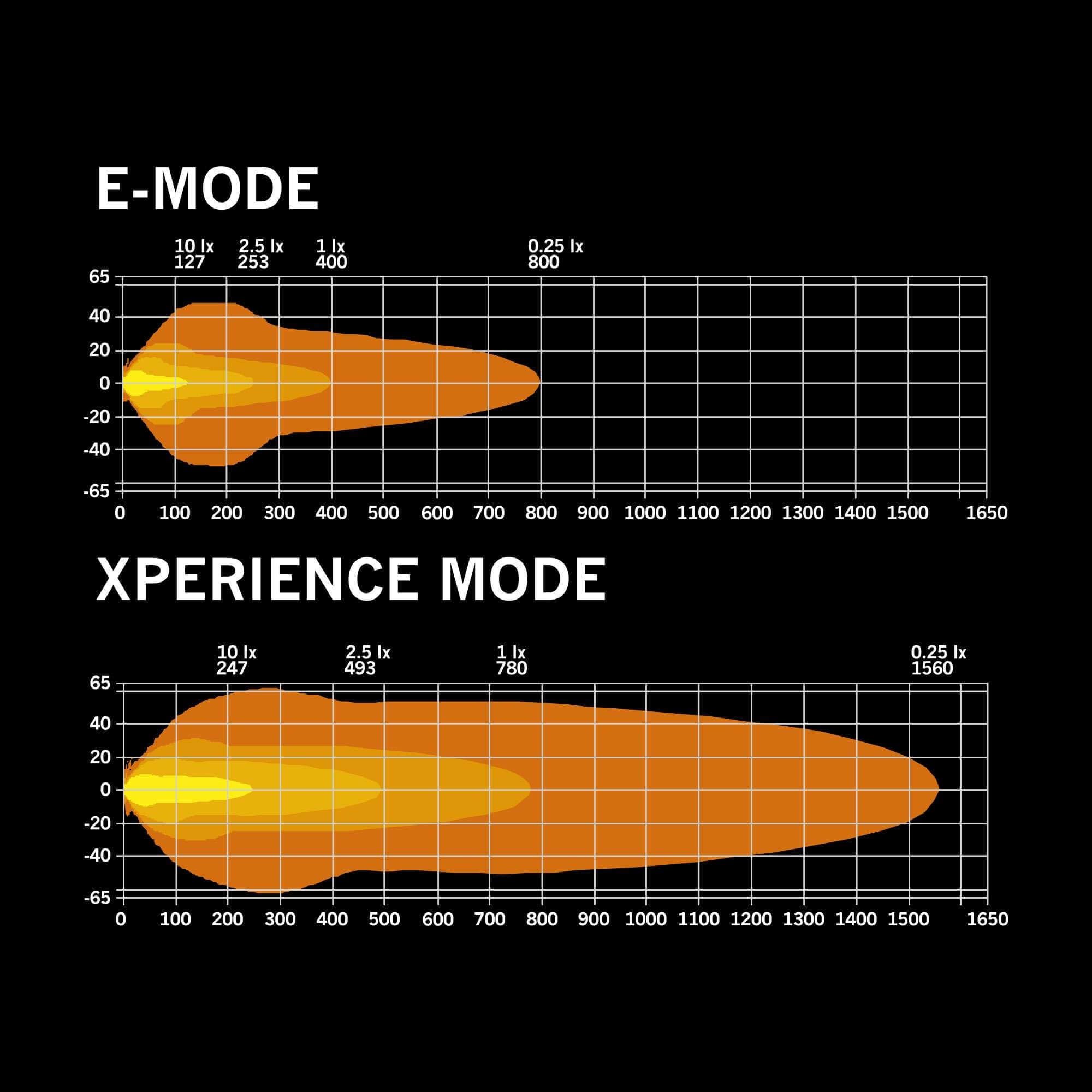

1 lux @ (m)
780
Color temperature (K)
5700
Beam pattern
High Beam
Beam angle (°)
12.1

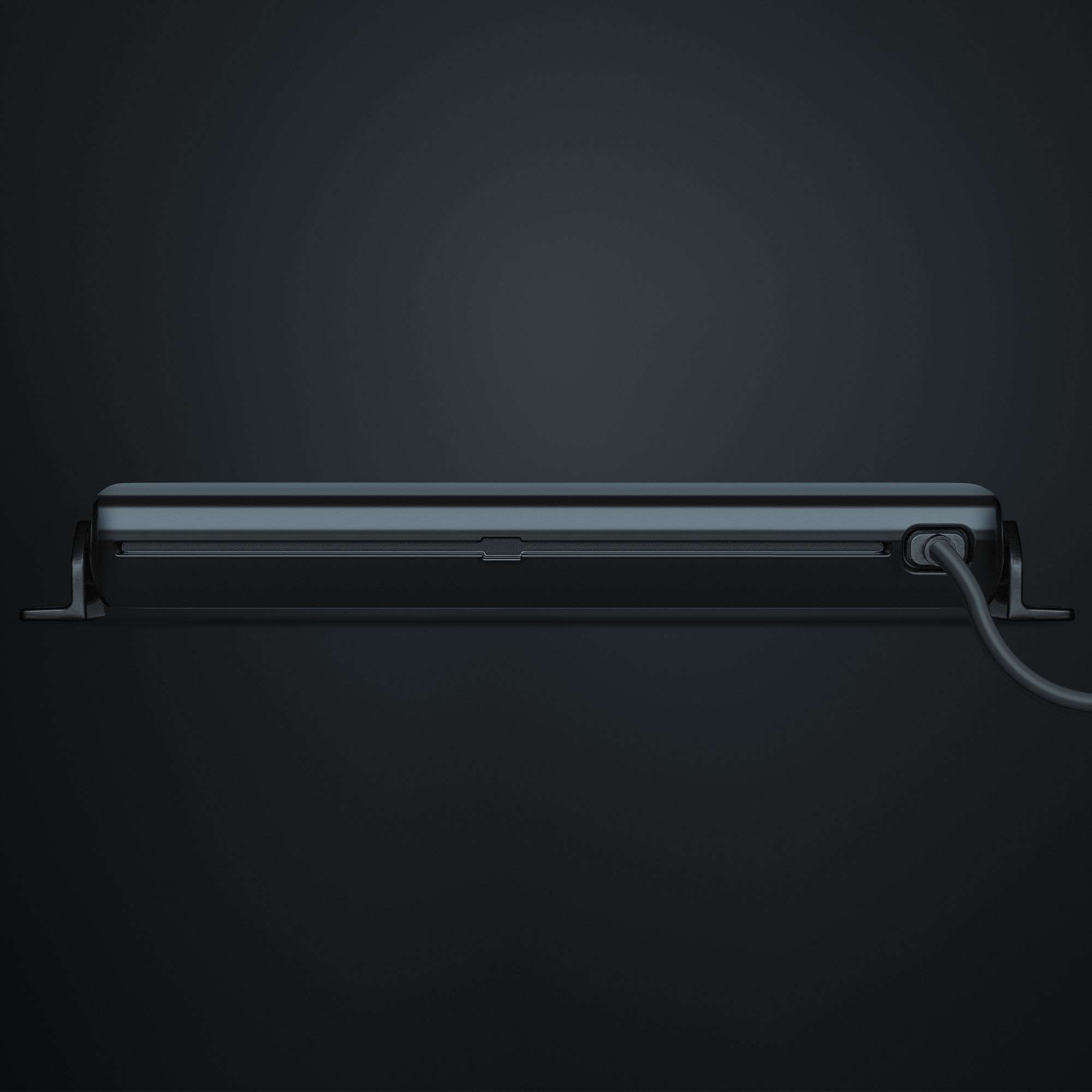

Connection
Cable
Cable length (mm)
2500
Color housing
Black
Color lens
Clear
Color LED's
White | Amber

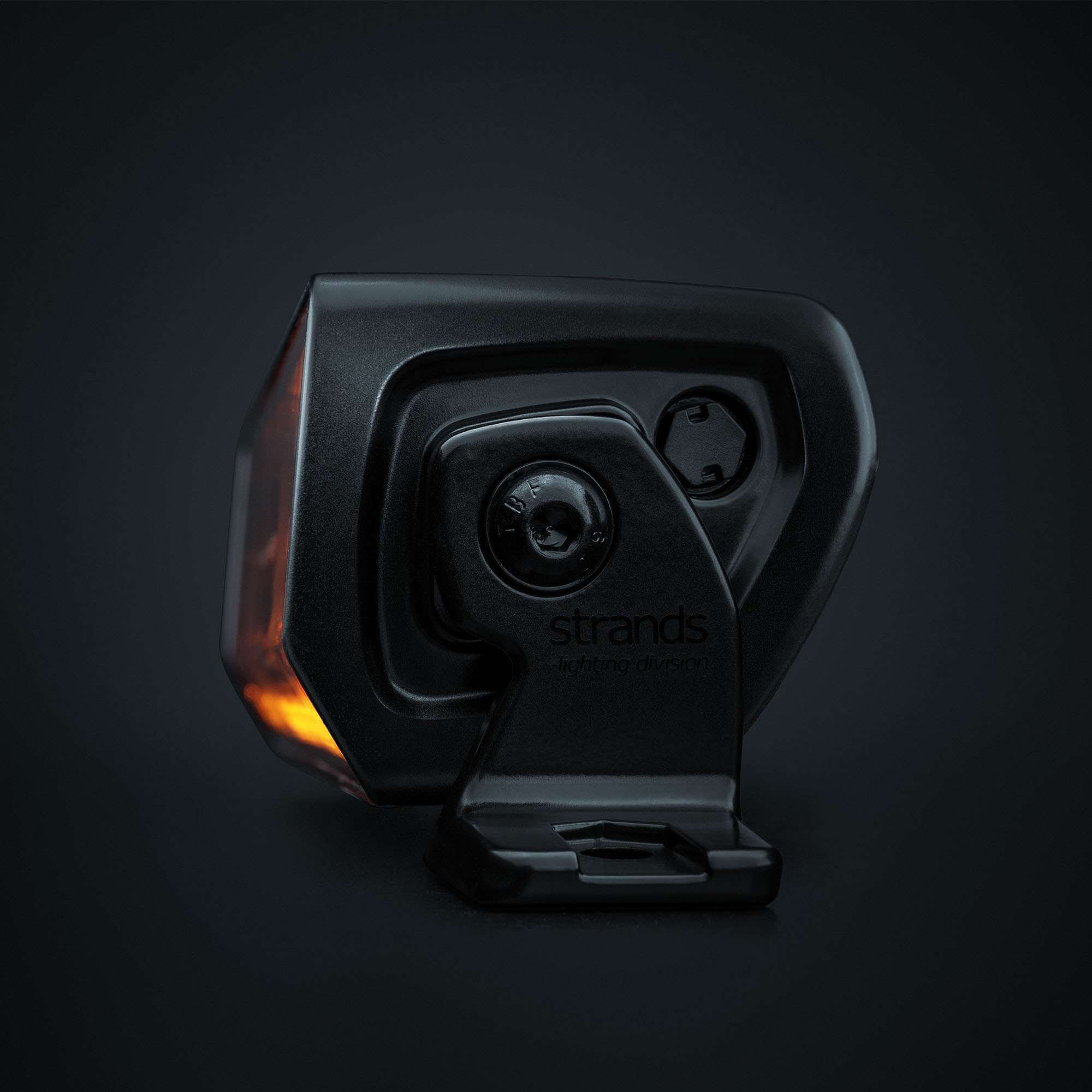

Material bracket
Aluminum alloy
Material housing/chassi
Aluminum
Material lens
Polycarbonate

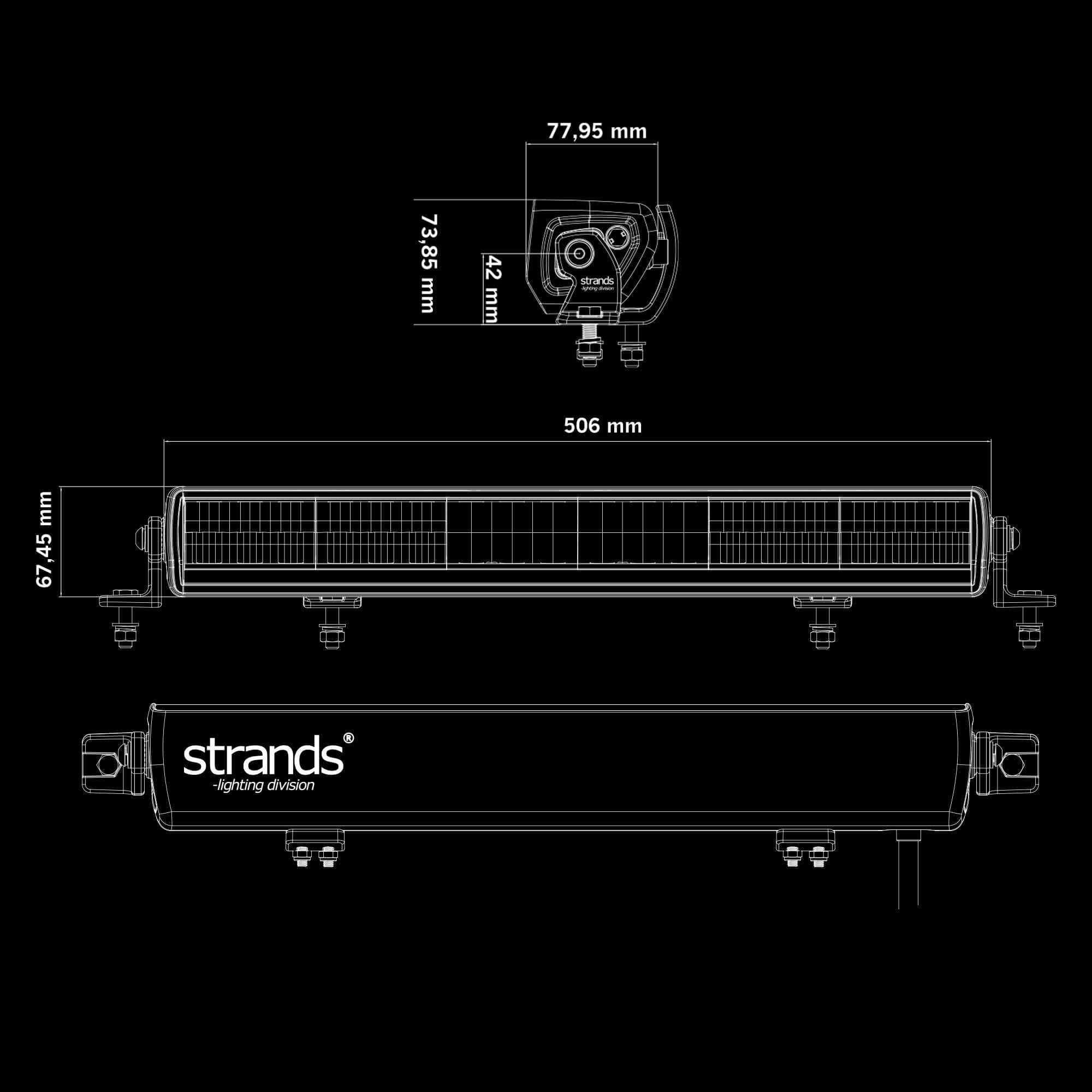

Length (mm)
506
Depth (mm)
78
Height (mm)
67.5
Height including bracket (mm)
73.9
Weight (kg)
3.3
IP-class
IP68/69K
Operating temperature (°C)
-35 - +60
E-approved
Yes
ECE approval
R10.06R148R149
Reference number
20 x 2

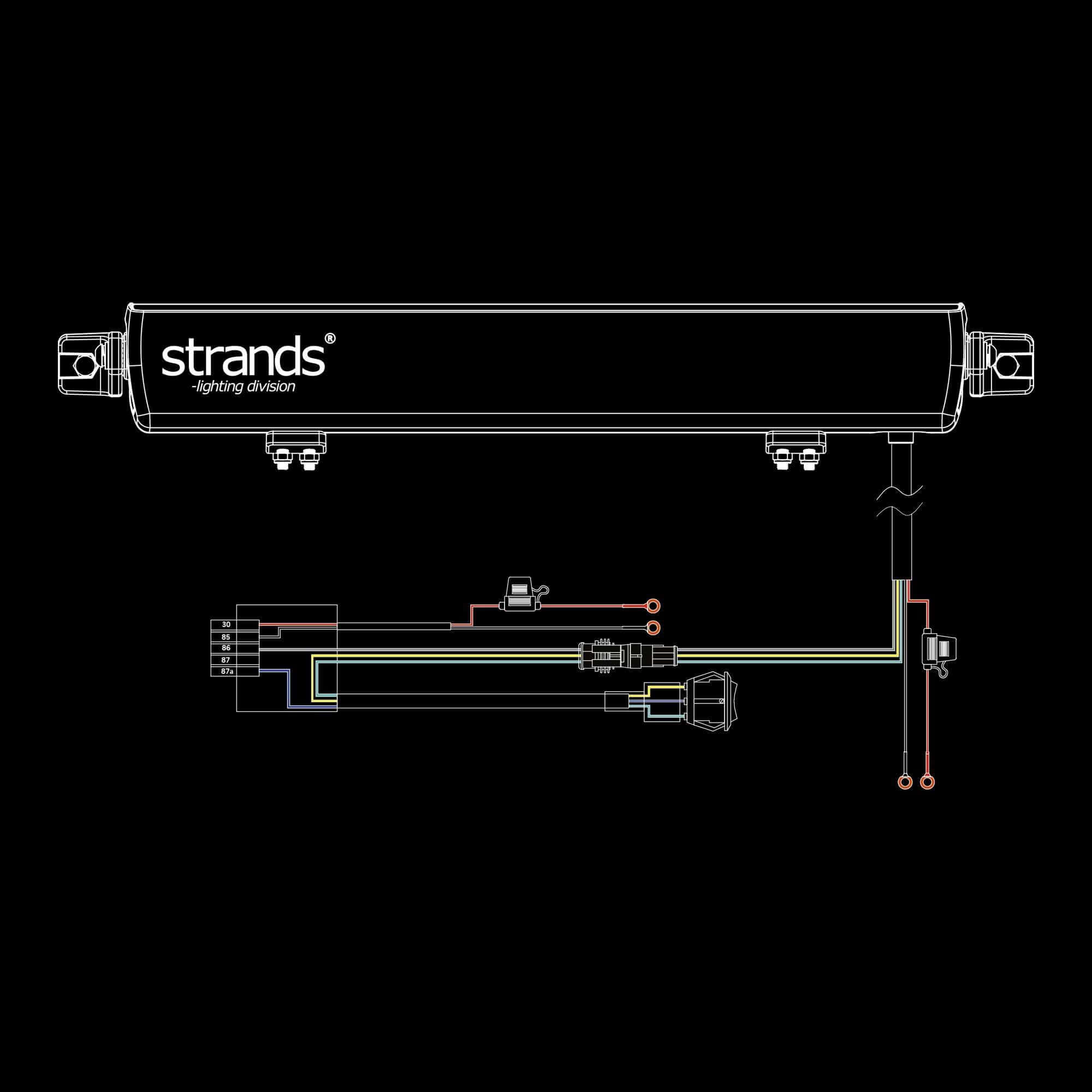

Cable assignment

Black
- (Negative)
Red
+ (High Beam)
White
+ (white position light)
Yellow
+ (Amber position light)
Grey
Signal wire connects to +VDC
Manual Product sheet
